2 Piece Stainless Steel WRAS Approved Ball Valve

  • WRAS Approved Ball Valve
  • CF8M Stainless Steel Body
  • Screwed BSP or NPT
  • Full bore, two piece
  • Sizes: 1/4" to 4"
  • Temperature range: -20°C to +180°C
  • Operating pressure: 1000 PSI WOG
  • WRAS Approved (BSP Only)
  • Free Handle Printing Available - See details below
From £6.95
SKU: BV5105 Availability: Available
In stock
SKU BV5105

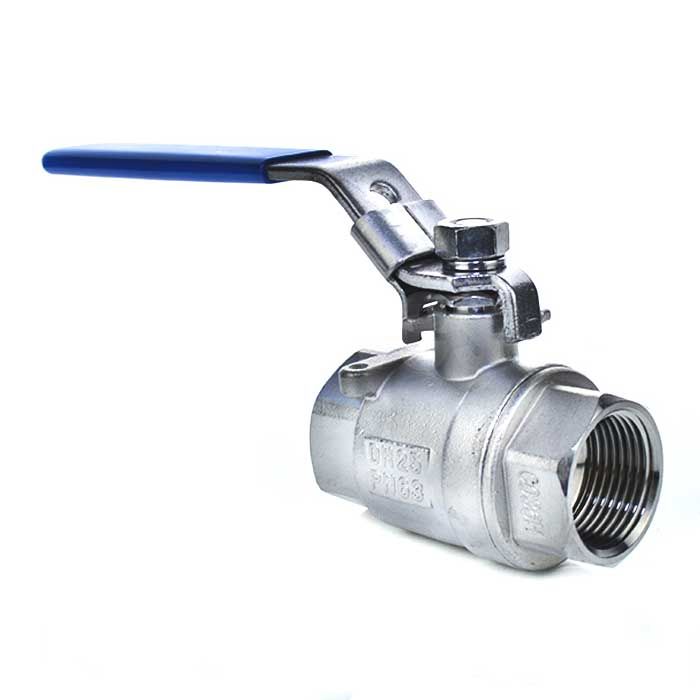

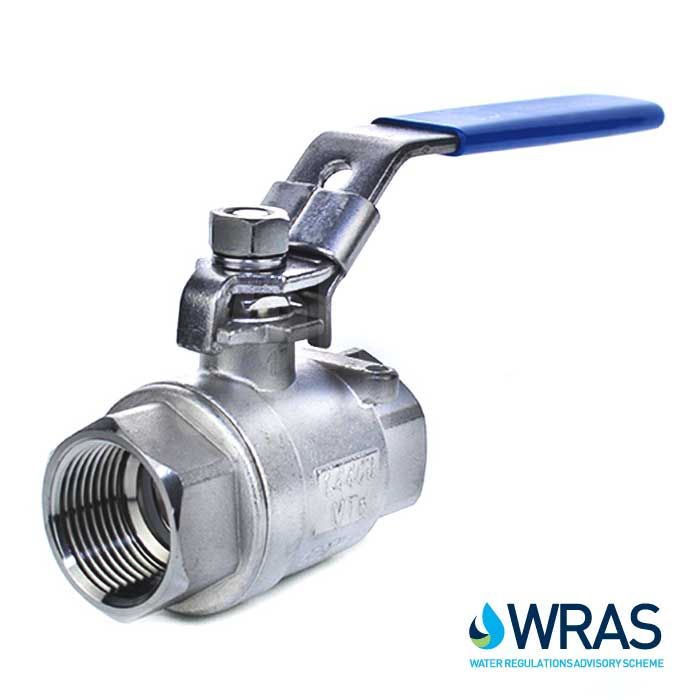

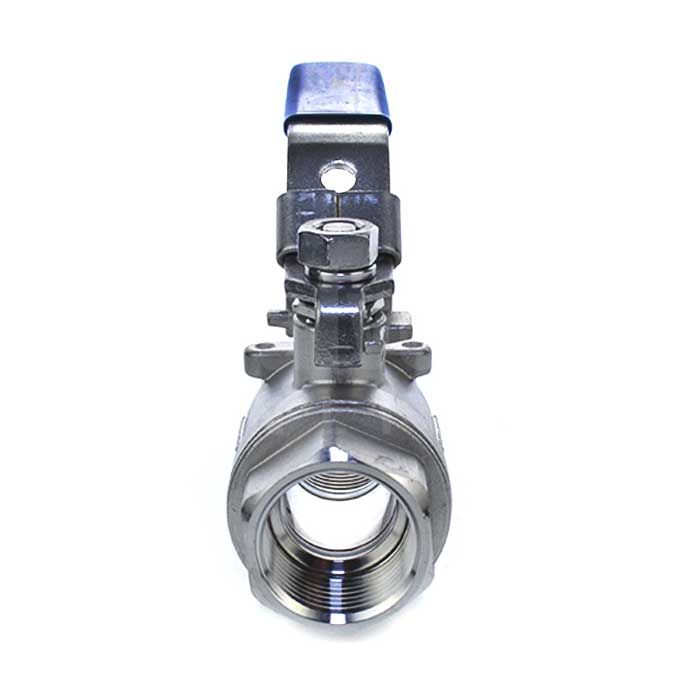

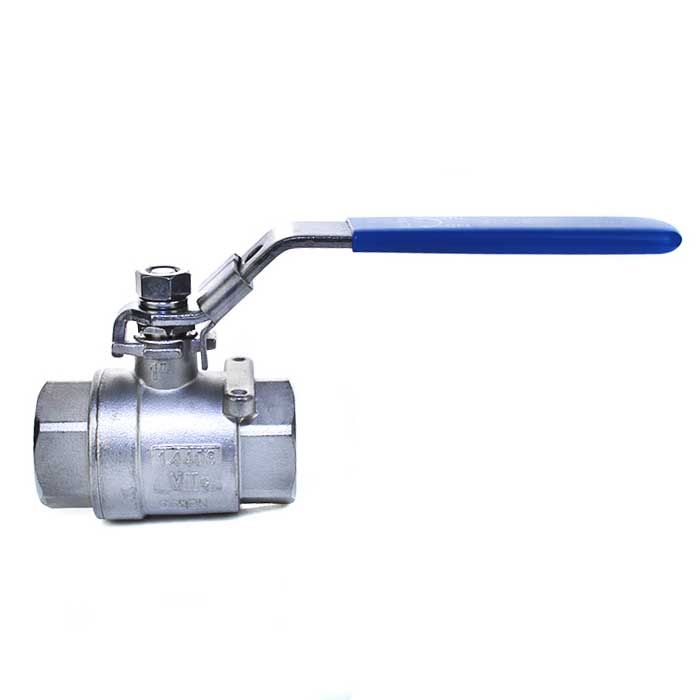

2 Piece Stainless Steel WRAS Approved Ball Valve

WRAS Approved 2 Piece Stainless Steel Ball Valve is a non-maintainable full bore ball valve; providing safe operation for both general and industrial chemical applications.

An economical, compact and reliable ball valve with CF8M Stainless Steel body and PTFE seat.

Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.

Features a blow-out proof stem and insulated grip, lockable lever handle.

WRAS Approval on BSP End Connection Only

Free Customised Lever Handle

Get your company noticed! Order 10 or more and have your name or logo printed on the lever handle for free. Once you have placed your order, simply email: sales@valvesonline.co.uk with your logo or company name and phone number.

  • All 10 or more ball valves must be the same size, same colour handle and the same valve
  • If you wish to order a mix of different sizes, coloured handles or valves, you will need to order 10 or more of each valve and size

Key features:

  • Screwed BSP or NPT
  • Sizes: 1/4" to 4"
  • CF8M Stainless Steel Body
  • PTFE Seat
  • Temperature range: -20°C to +180°C
  • Operating pressure: 1000 PSI WOG
  • Movement: 90° turn
  • Investment cast with low torque
  • WRAS Approved (BSP Only)

WRAS Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.
A valid certificate and approval number can be obtained upon request.

Datasheet:

Series 20LC Ball Valve 2 Piece Full Bore Female / Female Datasheet

More Information
Manufacturer VOLT
End Connection BSP, NPT
Body Material Stainless Steel
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design 2 Piece, Full Bore
Industry / Approvals General / Industrial / Process

The following downloads are available for the Series 20LC Ball Valve 2 Piece Full Bore Female / Female

Series 20LC Ball Valve 2 Piece Full Bore Female / Female Datasheet
