Stainless Steel Spring Check Valve Screwed BSP

SKU
CV4660

in-stock Available to Order

Key Features
  • Spring Check Valve
  • Stainless Steel Body
  • PTFE Seal
  • Heavy Duty
  • Screwed BSP
  • Spring Check or Foot Valve
  • Sizes 1/4" to 2"
  • Temperature range: -20°C to 120°C
  • Pressure rating: up to 20 Bar

Details

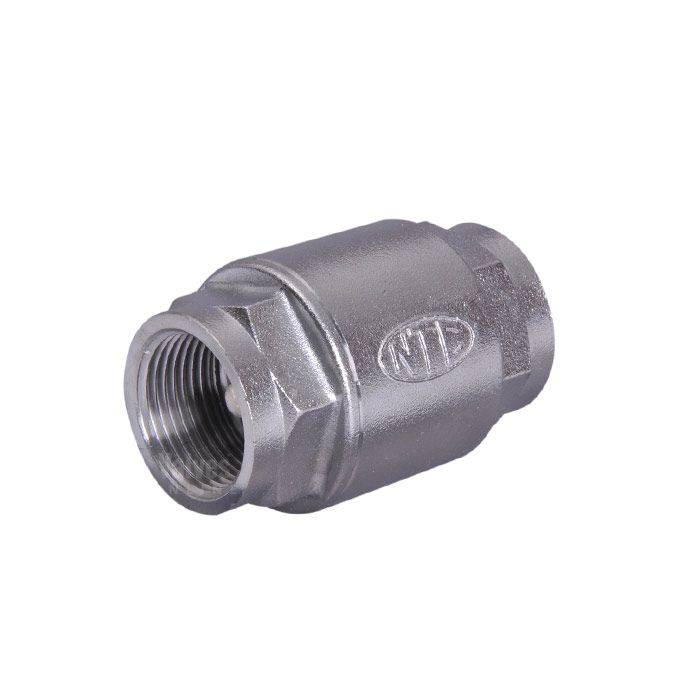

Stainless Steel Spring Check Valve Screwed BSP

Our Stainless steel spring check valve with screwed BSP connections, offers excellent sealing capabilities for both high and low pressures. Mildly corrosive applications are ideal for this stainless steel valve in water treatment, heating, air-conditioning plants and process systems.

This valve offers substantial advantages over other spring check valves that are available.

A reliable and robust non return valve featuring a 2 piece body, PTFE seal and Viton seat.

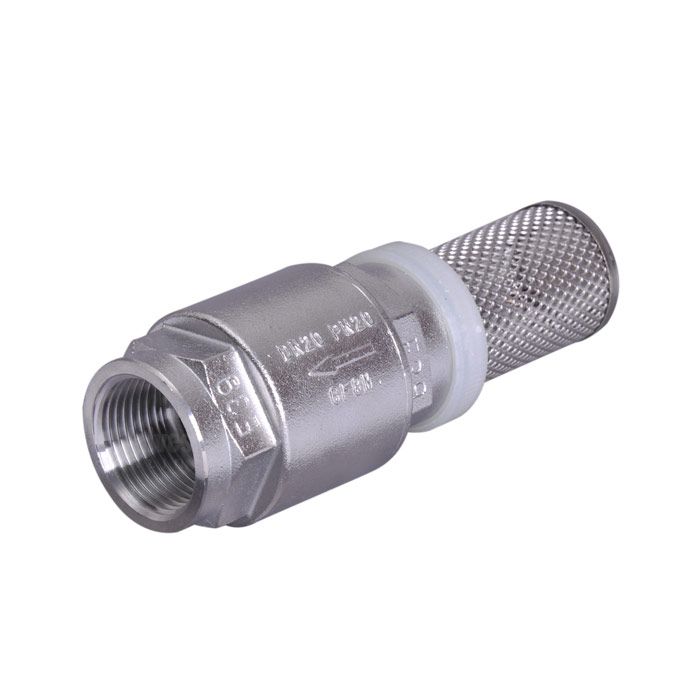

When fitted with a Stainless Steel basket the valve becomes a fully functional Foot Valve.

Installed either vertically (upwards only) or horizontally.

Key features:

  • Spring Check or Foot Valve
  • Guided Disc Design
  • Screwed BSP
  • Sizes: 1/4" to 2" (Spring Check) and 1/2" to 2" (Foot Valve)
  • ASTM A351 CF8M 316 Stainless Steel Construction with Chemically Polished Finish
  • 2 Piece Construction
  • PTFE Seal
  • Temperature range: -20°C to 120°C
  • Pressure rating: up to 20 Bar
  • Heavy Duty
  • High Performance
  • Quiet Operation
  • High Flow Rates

For full details please download the accompanying datasheet.

Datasheet:

 Stainless Steel Spring Check Valve Screwed BSP Datasheet

Technical Attributes

End Connection BSP
Design / Type Spring Check, Foot Valve
Industry / Approvals HVAC
Body Material Stainless Steel
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Manufacturer VOLT
Main Features
  • 1/4" to 2"
  • -20°C to 120°C
  • Up to 20 Bar Rated
