WRAS Approved Screwed Brass Gate Valve - BSPT

WRAS Approved Screwed Brass Gate Valve - BSPT


in-stock Available to Order

Key Features
  • Manual Gate Valve
  • Brass Body
  • PTFE seals
  • Screwed BSPT (PN20)
  • Sizes 1/4" to 4"
  • WRAS Approved

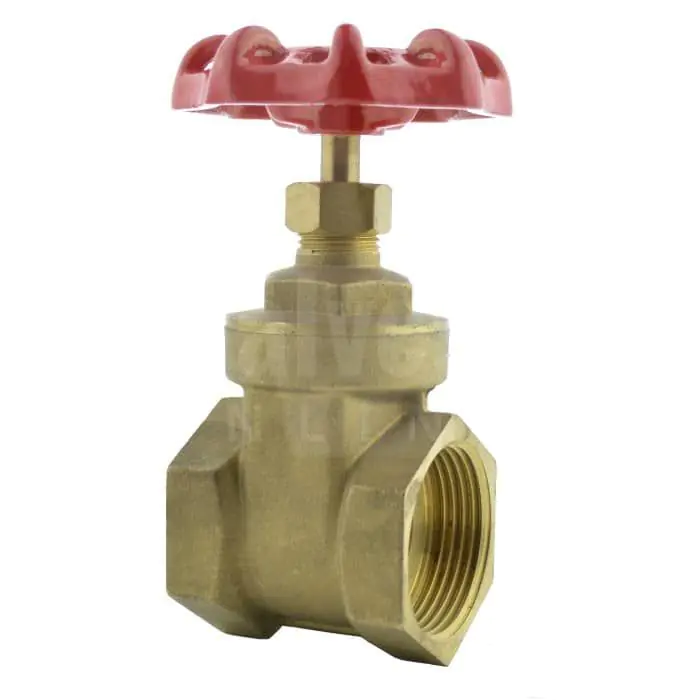

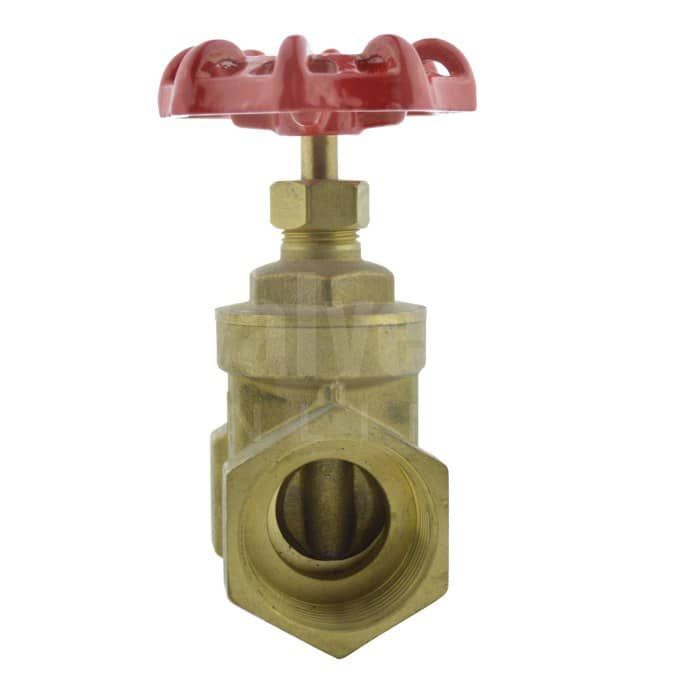

WRAS Approved Screwed Brass Gate Valve

Our Screwed Brass Gate Valve forms part of our VOLT range of manual valves; suitable for isolation of fluids and general purpose applications. Rated to PN20 this full bore manual valve with non-rising stem offers a robust and smooth operation via a handwheel. Available with BSP screwed threaded connections. For NPT connections please see GV5009.

VOLT Brass Gate valves are maintenance free, economical and feature a brass body, bonnet and where applicable cast hand wheel.

Key features:

  • Available in BSP Thread - sizes: 1/4" to 4".
  • Brass body with PTFE seals.
  • Temperature range: -20°C to 120°C (subject to configuration).
  • Pressure rating: PN20 (BSP) and Class 150 (NPT).
  • WRAS Approved

Manufactured to BS5154.

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.


 Screwed Brass Gate Valve Datasheet

Technical Attributes

End Connection BSP
Body Material Brass
Size 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Industry / Approvals WRAS, HVAC
Design Handwheel Non Rising Stem
Manufacturer VOLT
Main Features
  • 1/4" to 4"
  • BSPT
  • PN20 Rated
  • WRAS Approved
