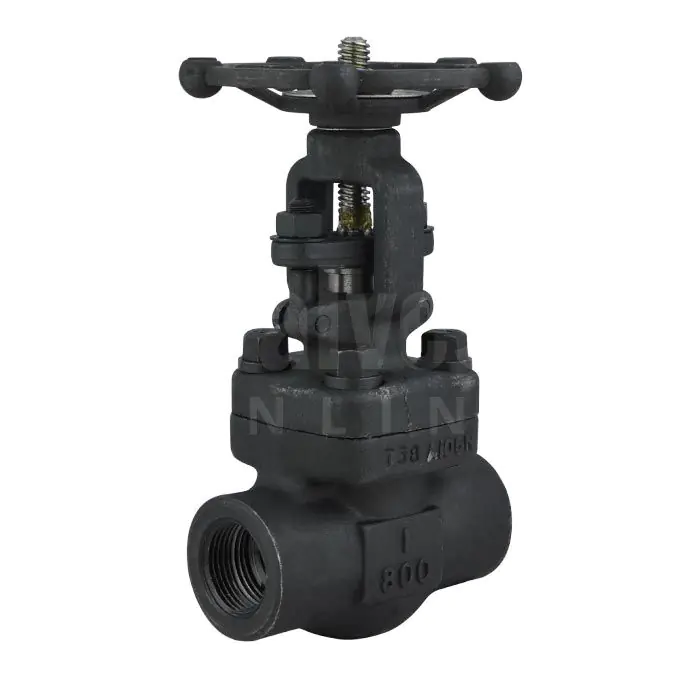

Forged Steel Gate Valve Class 800

  • Class 800 Gate Valve
  • Bolted Bonnet
  • Forged Steel A105N body and bonnet
  • Screwed BSP, NPT or Socket Weld
  • Sizes 1/2" to 2"
  • Temperature range: -29°C to 425°C.
  • Pressure up to 138 bar
From £28.00
SKU: GV4203 Availability: Available
In stock
SKU GV4203

Forged Steel Gate Valve Class 800

This heavy duty class 800 forged carbon steel Gate Valve is suitable for the most demanding of process applications. When open the media will flow with a minimal amount of turbulence and pressure drop through the valve and industries where the isolation of viscous fluids and liquid are required.

The valve is designed to API602 and has an outside screw and yolk with rising stem. The handwheel operates the gate valve for both isolation applications only.

Why use gate valves: these valves provide a positive tight shut off in the horizontal or vertical position for process fluids in pipelines. They also offer a small amount of control and are used to throttle steam, gas or liquids. Easy to operate and the preferred choice over ball valves by engineers to isolate trapping stations.

Typical applications:

  • Turbine room
  • Isolation
  • Condensate Lines
  • Before expensive plant equipment
  • Oil burner lines

Typical Industries:

  • Boiler Plant fuel line
  • Recycling facilities
  • Chemical industry
  • Steam Plant
  • Hospitals, schools and HVAC

Key features:

  • Handwheel operator
  • Bolted Bonnet
  • Forged Steel A105N body and bonnet
  • Screwed BSP, NPT or Socket Weld
  • Sizes 1/2" to 2"
  • Temperature range: -29°C to 425°C.
  • Pressure up to 138 bar

Datasheet:

Forged Steel Gate Valve Datasheet

More Information
End Connection BSP, NPT, Socket Weld
Body Material Forged Steel
Size 1/2", 3/4", 1", 1 1/2", 2"
Industry / Approvals High Temperature
Design Handwheel Rising Stem
Manufacturer VOLT

The following downloads are available for the Forged Steel Gate Valve:

Forged Steel Gate Valve Datasheet
