Mars Ball Valve Series 94D Flanged PN16 Direct Mount

  • Body material: Stainless Steel
  • End connection: Flanged PN16
  • Full Bore, two piece
  • Reinforced PTFE seat and ISO mounting top
  • Sizes: 1/2" to 4"
  • Temperature range: -20 °C to 180°C
  • Operating pressure: PN16 Rated
From £76.74
SKU: BV5120 Availability: Available
In stock
SKU BV5120

Mars Ball Valve Series 94D Flanged PN16 Direct Mount

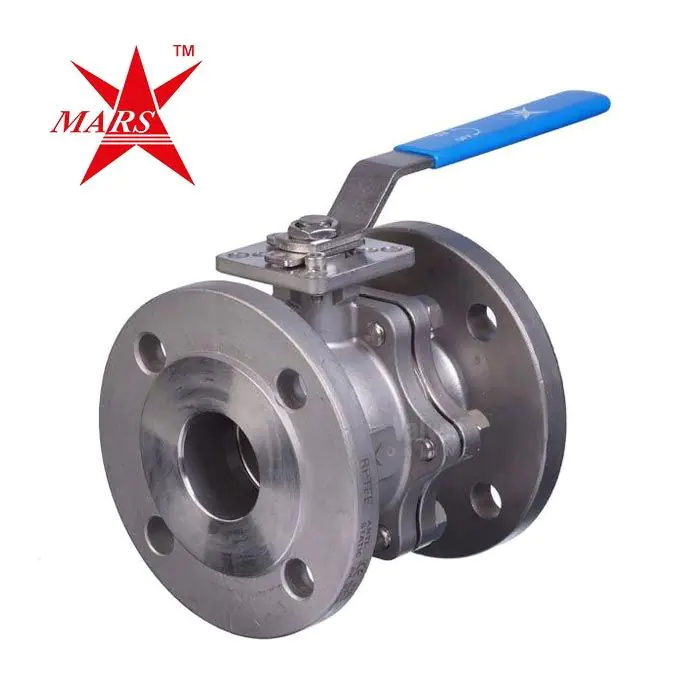

Our Mars Ball Valve Series 94D Flanged PN16 Direct Mount provides safe operation for both general and industrial chemical applications. A PN16 flanged, full bore two piece valve with split Stainless Steel body, reinforced PTFE seat and ISO mounting top for actuation.

Features a blow-out proof stem and self-adjusting stem sealing.

Key Features:

  • Available sizes: 1/2" to 4".
  • Temperature range: -20 °C to 180°C.
  • Operating pressure: PN16 Rated.
  • Insulated grip, lockable lever handle.
  • Movement: 90° turn.

Investment cast with low torque.

Datasheet:

Mars Ball Valve Series 94D Flanged PN16 Direct Mount Datasheet

Mars Ball Valve Series 94D Flanged PN16 Direct Mount User Manual

More Information
Manufacturer Mars
End Connection Flanged PN16
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design 2 Piece, Full Bore
Industry / Approvals General / Industrial / Process

The following downloads are available for the Mars Ball Valve Series 94D Flanged PN16 Direct Mount:

Mars Ball Valve Series 94D Flanged PN16 Direct Mount Datasheet

Mars Ball Valve Series 94D Flanged PN16 Direct Mount User Manual

The following certs and approvals are available to download for the Mars Series 94D:

CE Cert

PED Cert

PTFE Cert
