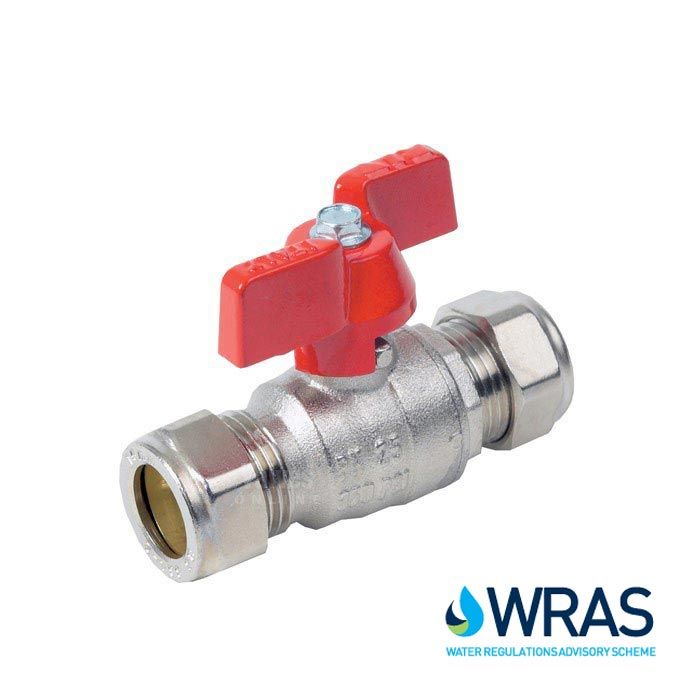

Brass Ball Valve Compression End with Butterfly Handle

Our Brass Ball Valve Compression End with Butterfly Handle is suitable for a range of media and applications; domestic water and heating systems. A full bore, robust manual valve with Copper to Copper compression ends and choice of Red, Yellow or Blue colour coded PVC insulated sleeve.

Key features:

Available in sizes: 15mm to 28mm.
Brass Nickel plated body with PTFE seals.
Temperature range: -15°C to 110°C.
PN40 (15mm), PN32 (22mm and 28mm).
Movement: 90°C turn.

Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.

A valid certificate and approval number can be obtained upon request.

The Brass Ball Valve Compression End with Butterfly Handle also has the option of an extended stem (POA).

Datasheet:

Brass Ball Valve Compression End with Butterfly Handle Datasheet

More Information

More Information
Manufacturer	VOLT
End Connection	Compression End
Body Material	Brass
Size	15mm, 22mm, 28mm
Design	Full Bore
Industry / Approvals	HVAC

Downloads

The following downloads are available for the Brass Ball Valve Compression End with Butterfly Handle:

Brass Ball Valve Compression End with Butterfly Handle Datasheet

Brass Ball Valve Compression End with Butterfly Handle - WRAS Approval Certificate

Approvals

The following approvals are available for the Brass Ball Valve Compression End with Butterfly Handle:

Brass Ball Valve Compression End with Butterfly Handle - WRAS Approval Certificate
