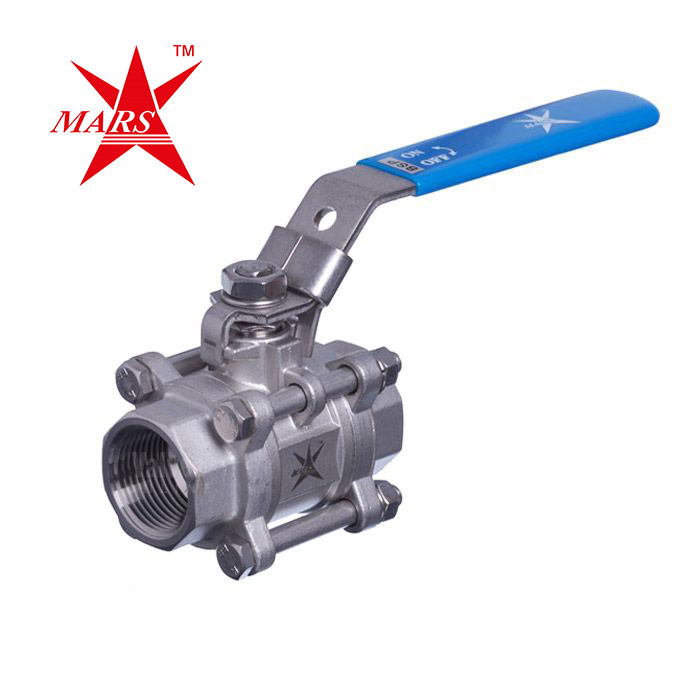

Mars Series 50 Stainless Steel Steam Isolation Ball Valve

SKU
BV5111

in-stock Available to Order

Key Features
  • Mars Series 50
  • Steam Rated Carbon Filled R-PTFE Seats
  • Full Bore, with Lockable Manual Lever
  • Stainless Steel CF8M 316 Body
  • Screwed BSP, Socket Weld, Butt Weld or NPT
  • Three piece, fully maintainable
  • Sizes: 1/4" to 4"
  • Temperature range: -20°C to +200°C
  • Max pressure: 1000 PSI (1/4" to 2") and 800 PSI (2 1/2" to 4")

Related Products

Stainless Steel Y Type Strainer Screwed
Stainless Steel Y Type Strainer Screwed
£22.87
View Product
Stainless Steel Spring Check Valve Screwed BSP
Stainless Steel Spring Check Valve Screwed BSP
£18.30
View Product
Mars Series 50 Ball Valve Repair Kit
Mars Series 50 Ball Valve Repair Kit
£13.71
View Product

Details

Mars Ball Valve Series 50 High Temperature, 3 Piece Ball Valve

Mars Series 50 High Temperature Ball Valve is a fully maintainable three piece, full bore ball valve; providing a cost-effective solution for 'shut-off' and isolation of low temperature steam duty and medium flows.

A general purpose ball valve that’s reliable. Stainless Steel body and Carbon Filled PTFE seat.

Features a blow-out proof stem and insulated grip, lockable lever handle.

Key features:

  • Stainless Steel CF8M 316 Body
  • Screwed BSP, Socket Weld, Butt Weld or NPT
  • Sizes: 1/4" to 4"
  • Temperature range: -20 °C to +200°C
  • Operating pressure: 1000 PSI (1/4" to 2") and 800 PSI (2 1/2" to 4")
  • Movement: 90° turn

Datasheet:

 Mars Ball Valve Series 50 3 Piece Full Bore Manual Female/Female Datasheet

Technical Attributes

Manufacturer Mars
End Connection BSP, NPT, Socket Weld, Butt Weld OD
Body Material Stainless Steel
Seat Material Carbon Filled R-PTFE
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design 3 Piece, Full Bore, Female x Female
Industry / Approvals General / Industrial / Process, High Temperature
Lever Lockable Manual Lever
Temperature Range -20°C to +200°C
Pressure Up to 1000 PSI (1/4" to 2") & 800 PSI (2 1/2" to 4")
Actuatable? No - Manual Operation Only

Approvals

The following certs and approvals are available to download for the Mars Series 50:

 CE Cert

 PED Cert

 PTFE Cert
