Economy Stainless Steel Knife Gate Valve - Pneumatic Actuated

Economy Stainless Steel Knife Gate Valve - Pneumatic Actuated


in-stock Available to Order

Key Features
  • Economy Stainless Steel Knife Gate Valve
  • Double Acting Pneumatic Actuator
  • Uni-directional
  • To fit between PN10 flanges
  • Stainless Steel Body
  • EPDM seat
  • Sizes 2" to 8"
  • Side Protection Plates Included

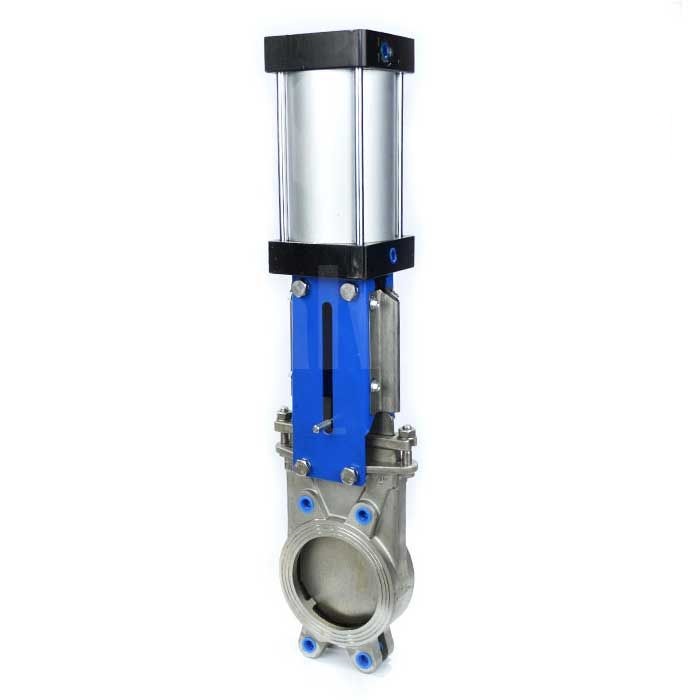

Economy Stainless Steel Pneumatic Actuated Uni Directional Knife Gate Valve

This economy pneumatic double acting knife gate valve features a Stainless Steel body, EPDM seals and Stainless Steel gate, available in sizes: 2" to 8".

Lugged and tapped, this tough and reliable uni-directional knife gate valve fits between PN10 flanges and is suitable for use in water treatment, food, chemical and pulp industries.

The pneumatic cylinder is a powerful actuator and offers long and repeatable life.

Options available on request include: NBR seals, limit switches, position detectors and pilot solenoids, fitted and piped up.

Key Features:

  • Pneumatic Double Acting Actuator
  • Uni-directional
  • To fit between PN10 Flanges
  • CF8M Stainless Steel Body
  • 316 Stainless Steel Gate
  • EPDM Seat
  • Sizes 2" to 8"
  • Rising Stem
  • Low Pressure Loss
  • Temperature range: -10°C to +120°C
  • Side protection plates included

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.


 Economy Stainless Steel Knife Gate Valve - Pneumatic Actuated Datasheet

Technical Attributes

Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Body Material Stainless Steel
Design Lugged, EPDM Seat, Uni-directional
Industry / Approvals Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
Flange Accomodation PN10
Manufacturer VOLT
