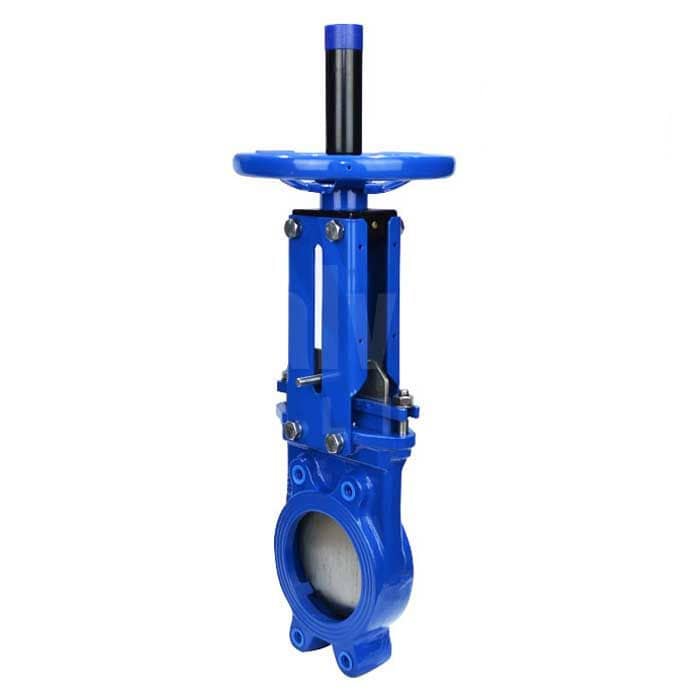

Economy Knife Gate Valve Handwheel Operator

Economy Knife Gate Valve Handwheel Operator


in-stock Available to Order

Key Features
  • Economy Knife Gate Valve
  • Handwheel Operator
  • Uni-directional
  • To fit between PN10 / PN6 flanges
  • Cast Iron body
  • EPDM seat
  • Sizes 2" to 16"


Economy Knife Gate Valve Handwheel Operator

Our Economy Knife Gate Valve Handwheel Operator is suitable to fit between PN10 / PN6 flanges and designed for general industrial service applications. A low-cost unidirectional, rising stem, lever operated manual knife gate valve featuring a full circular bore resulting in high flow capacities and low pressure drops.

The design of the body and seat ensures non-clogging isolation on suspended solids in industries including: pulp and paper,bulk handling, mining, food, beverage, chemical, power and waste water treatment.

Key features:

  • Available Lugged with EPDM seat, sizes: 2" to 16".
  • Cast Iron powder coated body with 304 Stainless Steel gate.
  • Temperature range: -10°C up to 120°C.
  • Pressure rating: PN10 (2" to 10") and PN6 (12" to 16").
  • Actuated and handwheel versions available.

Optional extra: can be configured with or without side protection plates.

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.


 Economy Knife Gate Valve Datasheet

Technical Attributes

Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300), 14" (DN350), 16" (DN400)
Body Material Cast Iron
Design Lugged, Handwheel, EPDM Seat, Uni-directional
Industry / Approvals Water Treatment / Desalinization, Mining / Slurry, Bulk Handling, Power Plant, Pulp / Paper
Flange Accomodation PN6, PN10
Manufacturer VOLT
