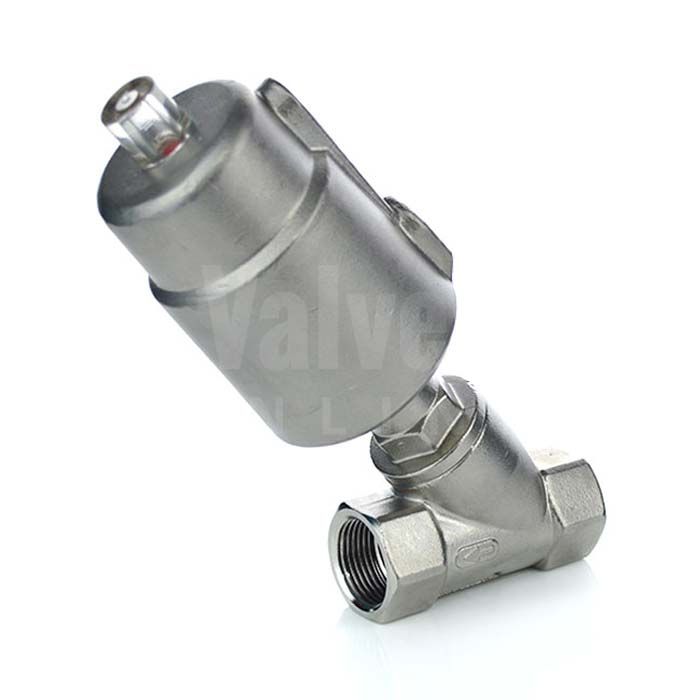

Economy Angle Seat Piston Valve with Pneumatic Actuator

Economy Angle Seat Piston Valve with Pneumatic Actuator


in-stock Available to Order

Key Features
  • Economical Angle Seat Valve
  • Pneumatic Actuator
  • Normally Closed
  • Stainless Steel Body, Piston & Actuator
  • Sizes 3/8" to 2 1/2" BSP Connections
  • Liquid, Steam & Gas
  • Temperature up to 200°C


Economical Pneumatic Angle Seat Piston Valve

The VOLT Pneumatic Angled Seat Valve or sometimes called a ‘Piston Valve’ offers unbeatable quality coupled with low cost. The valve is manufactured in stainless-steel (body, piston and actuator) air operated and suitable for on/off control of air, water, oil and steam with applications up to 200°C.

Sizes range from 3/8" to 2 1/2" with Screwed BSP Connections. Easy to operate and works in conjunction with our banjo pilot valves in 3/2 function for single use or manifoled bank of 3/2 valves for multi-systems.

This rugged engineered piston valve is designed for unmatched cycle life found in many industrial applications, offering superior performance and reliability. Offered in a normally closed fail-safe function (closes on loss of air failure and if using a pilot valve on electrical failure).

Key Features:

  • Stainless Steel Body, Piston and Actuator
  • Pneumatic Piston Globe Y Pattern Valve
  • PTFE Seals
  • 2 Way Direct Acting
  • Water hammer - free
  • Spring Close - Air Open
  • Screwed BSP Connections
  • Optical Indicator
  • Temperature up to 200°C
  • Sizes: 3/8" to 2 1/2"
  • Pressure up to 16 bar


 Economy Angle Seat Piston Valve with Pneumatic Actuator Datasheet

Technical Attributes

Media Steam
Body Material Stainless Steel
Function Normally Closed
End Connection BSP
Size G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2, G2 1/2
Manufacturer VOLT
Main Features
  • 3/8" to 2 1/2"
  • Screwed BSP
  • Up to 200°C
