Bray Butterfly Valve Series 41 Lugged PN16 High Temperature

  • Bray Series 41
  • Lugged PN16
  • Carbon Steel or Stainless Steel
  • RTFE seat
  • Sizes 2 1/2" to 12"
  • Temperature range: -29°C to 260°C
From £614.40
SKU: BR0541 Availability: Available
In stock
SKU BR0541

Bray Butterfly Valve Series 41 Lugged PN16 High Temperature

Bray's Butterfly Valve Series 41 Lugged PN16 High Temperature is suitable for critical service applications, including industrial, HVAC, hot water systems, steam isolation and many more! A high performance lugged and tapped butterfly valve featuring a Carbon Steel or Stainless Steel body and RTFE seat, providing zero leakage.

Bray high performance butterfly valves offer a lightweight and simple to install alternative to more tradition, bulkier designs including ball and globe valves.

An innovative design butterfly valve for arduous duties delivering reliability and ease of maintenance.

Suitable to fit between PN16 flanges.

Key features:

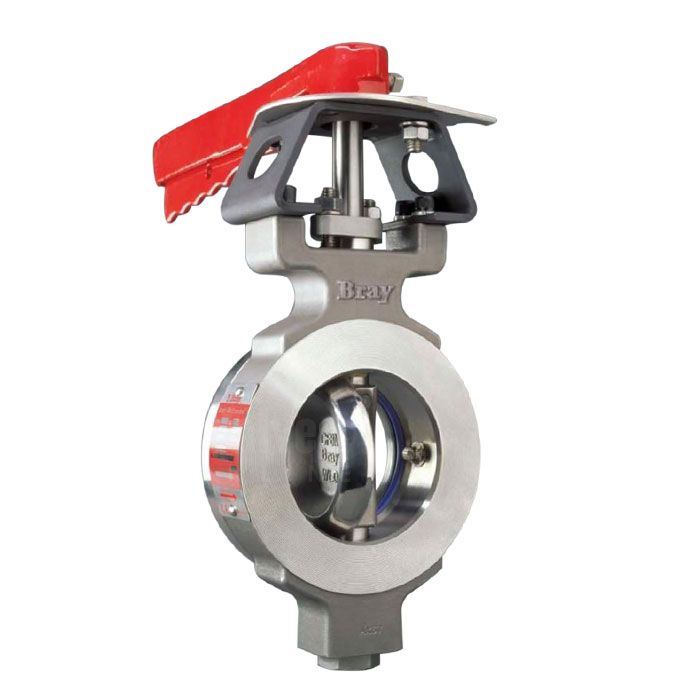

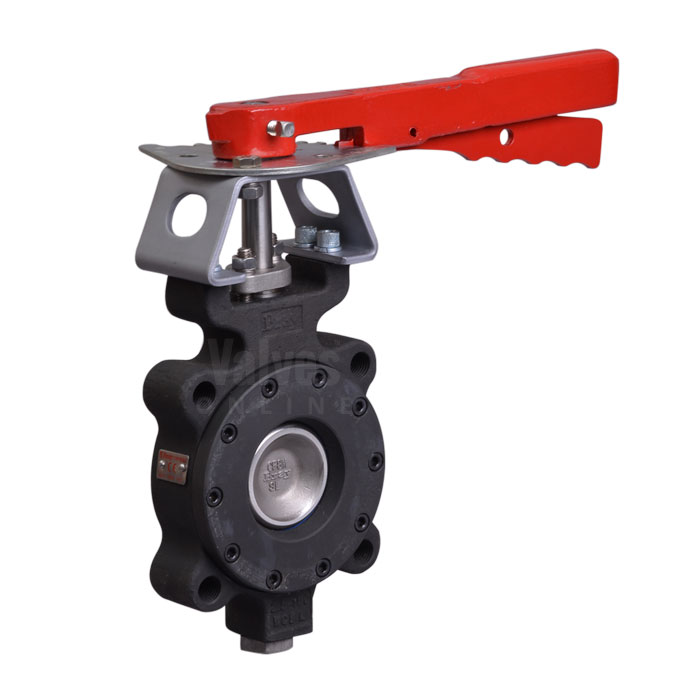

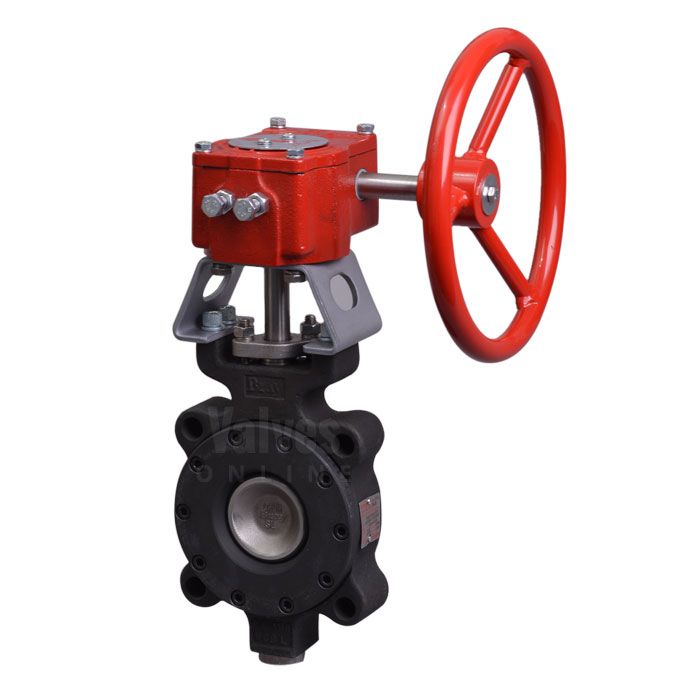

  • Available in Carbon Steel or Stainless Steel with RTFE seat, sizes 2 1/2" to 6" (Lever) and 2 1/2" up to 12" (Gearbox).
  • Temperature range: -29°C to 260°C (subject to the process pressure).
  • Pressure rating: PN16.
  • Supplied with lever operator.
  • Ideal for end of line service.

For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)

Download our technical PDF datasheet here

More Information
Design Lugged, High Temperature
Flange Accomodation PN16
Body Material Stainless Steel, Carbon Steel
Size 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Disc Material Stainless Steel
Liner RTFE
Industry / Approvals HVAC
Manufacturer Bray

The following downloads are available for the Bray Butterfly Valve Series 41 Lugged PN16 High Temp:

Bray Butterfly Valve Series 41 Lugged PN16 High Temp Datasheet
