Bray Series 41 Lugged PN16 Fire Safe Butterfly Valve

  • Bray Series 41
  • Lugged PN16
  • Carbon Steel, Stainless Steel, Ali Bronze or Super Duplex
  • RTFE / Inconel seat
  • Sizes 2" to 12"
  • Temperature: -29°C to 260°C
  • Fire Safe
From £936.00
SKU: BR0241 Availability: Available
In stock
SKU BR0241

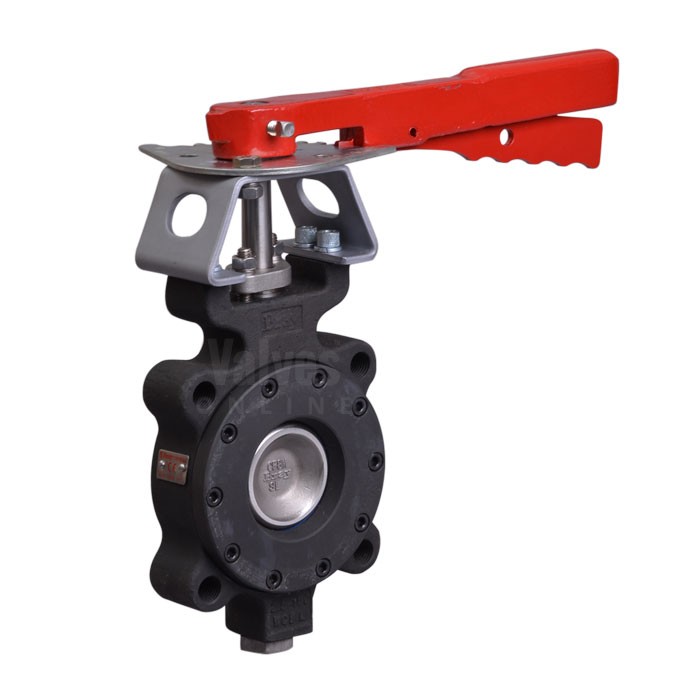

Bray Series 41 Lugged PN16 Fire Safe Butterfly Valve

Bray's Series 41 Lugged PN16 Fire Safe Butterfly Valve is suitable for high temperature, high pressure critical service applications, an innovative design butterfly valve for arduous duties delivering reliability and ease of maintenance. A lugged, high performance butterfly valve featuring a Carbon Steel, Stainless Steel, Ali Bronze or Super Duplex body and RTFE / Inconel seat providing Fire Safe zero leakage shut-off.

Bray high performance butterfly valves offer a lightweight and simple to install alternative to more tradition, bulkier designs including ball and globe valves.

Reliable and safe control of flammable and hazardous fluids for the oil and gas industry.

Suitable to fit between PN16 flanges.

Key features:

  • Available in Carbon Steel, Stainless Steel, Ali Bronze or Super Duplex with lever or gearbox operator, sizes: 2" up to 12".
  • Temperature range: -29°C to 260°C (subject to the process pressure).
  • Pressure rating: PN16.
  • Lever or gearbox operator.
  • Fire safe.

For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)

Download our technical PDF datasheet here

More Information
Design Lugged
Flange Accomodation PN16
Body Material Aluminium Bronze, Stainless Steel, Carbon Steel, Super Duplex
Size 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Disc Material Stainless Steel
Liner RTFE / Inconel (Fire Safe)
Industry / Approvals Fire Safe
Manufacturer Bray

The following downloads are available for the Bray Series 41 Lugged PN16 Fire Safe Butterfly Valve:

Bray Series 41 Lugged PN16 Fire Safe Butterfly Valve Datasheet
