TLV VC2 Bronze Automatic Air Vent

Details

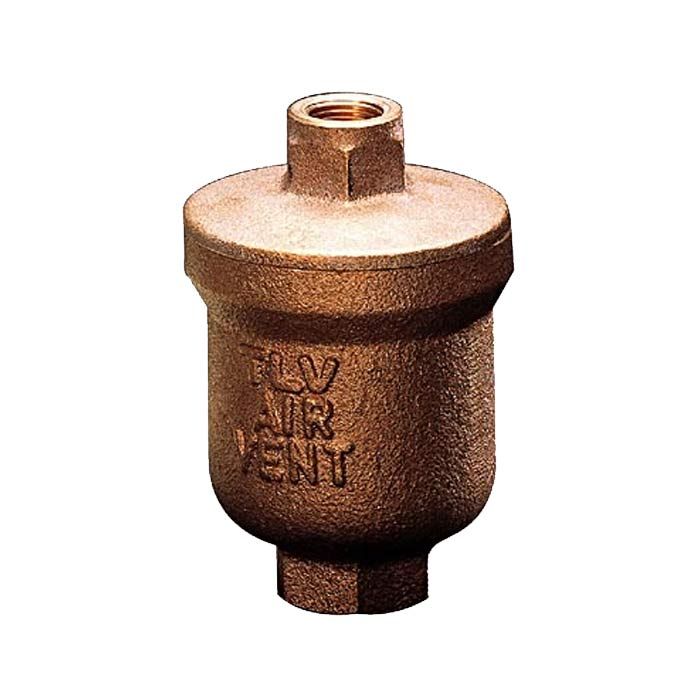

TLV VC2 Bronze Automatic Air Vent

TLV's bronze automatic air vent is used to remove air from pipelines carrying liquids and features a grounded float and rubber seat for tight shut-off.

Designed for venting air on start-up and during operation of water lines the TLV VC2 also acts as a vacuum breaker.

For use on cold and hot water systems.

Operating pressure range:

• 0 - 5 Bar

Operating temperature:

• Up to 90 ℃

Connections:

• 1/2" BSP screwed Inlet
• 3/8" BSP screwed Outlet

Common applications include the transport of fluids, air conditioning facilities, solar systems, water storage tanks and water transport lines.

Datasheet:

 TLV VC2 Bronze Automatic Air Vent Datasheet
