TLV S3 Free Float Steam Trap to suit Quick Trap Connector

SKU
QT5355

in-stock Available to Order

Key Features
  • Free Float Steam Trap unit
  • Stainless Steel
  • Flanged Connection
  • Designed to fit 1/2", 3/4" and 1" universal QuickTrap connectors from TLV and other brands
  • Differential pressures of 5, 10 and 21 BarG
  • Max operating pressure: 21 BarG
  • Max operating temperature: 400°C

Details

TLV S3 Free Float Steam Trap to suit Quick Trap Connector

The TLV S3 is a steam trap module suitable for use with any brand of QuickTrap connector. Fully Welded stainless steel construction and connection through the universal two bolt flange of an in-line QuickTrap connector. Utilises the TLV design of free float steam trap that allows for continuous (self-modulating) low velocity discharge of condensate. Thanks to the universal flange the S3 is suitable for use on either vertical or horizontal pipelines.

Supplied in stainless steel with the universal connection flange to suit 1/2", 3/4" and 1" universal connectors from TLV or other brands. Suitable for processes where differential pressure does not exceed 5,10 or 21 BarG and a maximum operating pressure of 21 BarG and maximum operating temperature of 400°C. Please note the allowable operating conditions of the S3 trap unit may limit the operating conditions of the QuickTrap connector.

For a full trapping station, a QuickTrap in-line connector is also required, the available choice from TLV includes In-Line QuickTrap Connector (F46), In-Line QuickTrap Connector with inlet Isolation Valve (V1), In-Line QuickTrap Connector with inlet and outlet isolation valves (V2).

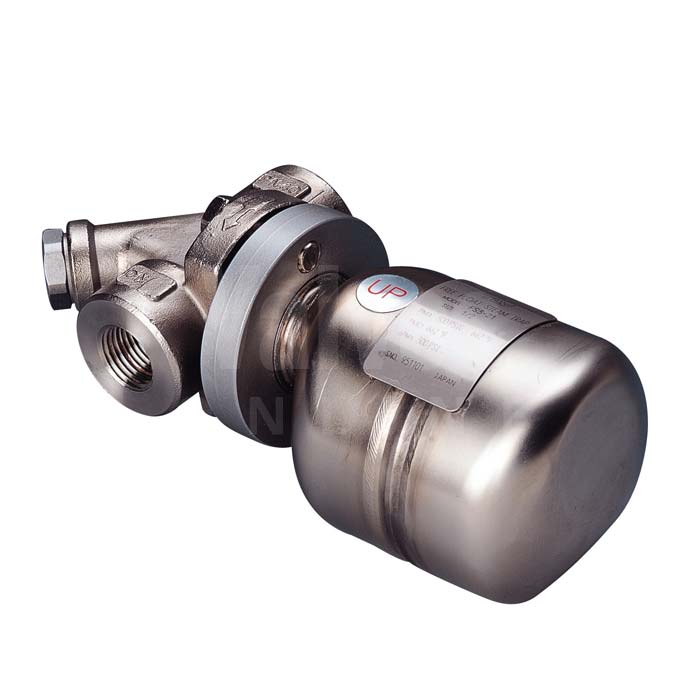

Image shows FS3 Free Float Steam Trap Quick Trap Station

Key Features:

  • Steam Trap Unit only (In-Line QuickTrap Connector required)
  • Stainless Steel Construction
  • Universal Two Bolt Flange connection (QuickTrap)
  • Free Float Mechanical Operation
  • Differential pressures up to 5, 10 and 21 BarG
  • Maximum Operating Pressure: 21 BarG
  • Maximum Operating Temperature: 400°C

Datasheet:

 TLV S3 Free Float Steam Trap to suit Quick Trap Connector Datasheet

Technical Attributes

Category Free Float
Function/Use Mains Line
Capacity Up to 760kg/h
End Connection Flanged
Body Material Stainless Steel
Size 1/2", 3/4", 1"
Manufacturer TLV
