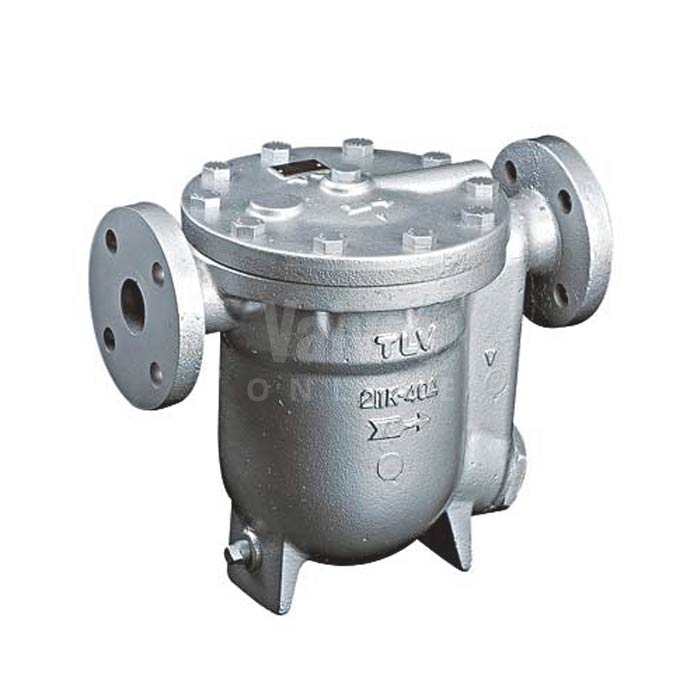

TLV J7.2X Flanged Free Float Steam Trap

  • Free Float Mechanical Steam Trap
  • Cast Iron body
  • Flanged end connection
  • Size: 1 ½” and 2”
  • Differential pressure up to 0.5, 1, 2, 5, 10 and 13 BarG
  • Discharge Capacities up to 7000kg/h
  • Built in Strainer and Thermostatic Air Vent
From £1,385.00
SKU: ST5317 Availability: Available
In stock
SKU ST5317

TLV J7.2X Flanged Free Float Steam Trap

The Free Float design of the J7.2X Steam Trap offers advantages over traditional mechanical steam traps from other manufacturers including increased lifetime and efficiency. The integral strainer and thermostatic air vent protects the equipment from particulate and increases productivity by removing hot and cold air from the system.

Suitable for condensate discharge requirements up to 7000kg/h and differential pressures up to 0.5, 1, 2, 5, 10 and 13 BarG. Maximum operation pressure of 13 BarG and temperature of 200°C combined with the Free Float functionality mean the J7.2X is suitable for a wide variety of larger consumption process uses. Available with Cast Iron Body, Stainless Steel Internals and flanged end connections.

Key features:

  • Cast Iron Body and Stainless Steel internal wetted components.
  • Flanged connections: 1 ½” and 2”.
  • Built in Strainer and Thermostatic Air Vent.
  • Free Float Continuous Discharge Mechanical Steam Trap.
  • Orifices to Suit differential pressures up to 0.5, 1, 2, 5, 10 and 13 BarG.
  • Max Operating Pressure: 13 BarG.
  • Max Operating Temperature: 200°C.
  • Discharge Capacities up to 7000kg/h.

Download our technical PDF datasheet for the TLV J7.2X Flanged Free Float Steam Trap.

More Information
Category Free Float
Function/Use Process
Capacity Greater than 3500kg/h
End Connection Flanged
Body Material Cast Iron
Size 1 1/2", 2"
Manufacturer TLV

The following downloads are available for the TLV J7.2X Flanged Free Float Steam Trap:

TLV J7.2X Flanged Free Float Steam Trap Datasheet
