Stainless Steel Y Type Strainer Flanged

  • Y Type Strainer
  • Stainless Steel body
  • 1.5mm to 2mm mesh
  • Flanged PN16 or ANSI 150
  • Sizes: 1/2" to 10"
  • Temperature up to 180°C
From £81.00
SKU: YS5041 Availability: Available
In stock
SKU YS5041

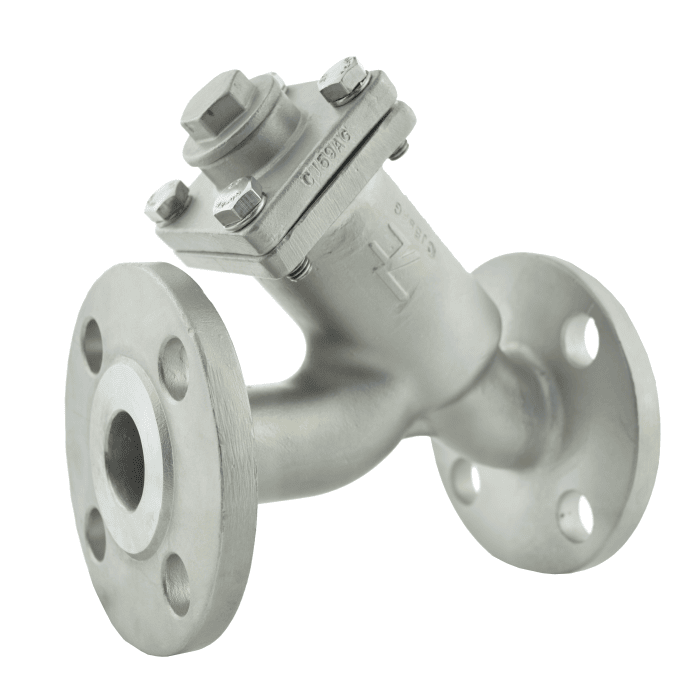

Stainless Steel Y Type Strainer Flanged

Our Stainless Steel Y Type Strainer Flanged is compact, easy to clean and features a removable drain plug and Stainless Steel screen mesh. It provides an economical solution and is recommended for applications where damage to valves and other related mechanical equipment needs to be avoided.

Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.

Key features:

  • Available in PN16 or ANSI 150 flanged, sizes: 1/2" up to 10".
  • Screen mesh sizes 1.5mm 1/2" to 1" and 2mm 1 1/4" to 10".
  • Temperature range: Up to 180°C .
  • Pressure rating: PN16 or ANSI 150.

The installation of a strainer is always recommended to ensure trouble-free service.

Download our technical PDF datasheet here

More Information
End Connection Flanged PN16, Flanged ANSI 150
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
Filtration 1.5mm (Mesh 12), 2mm (Mesh 10)
Design Y Type
Industry / Approvals Steam
Manufacturer VOLT

The following downloads are available for the Stainless Steel Y Type Strainer Flanged:

Stainless Steel Y Type Strainer Flanged Datasheet
