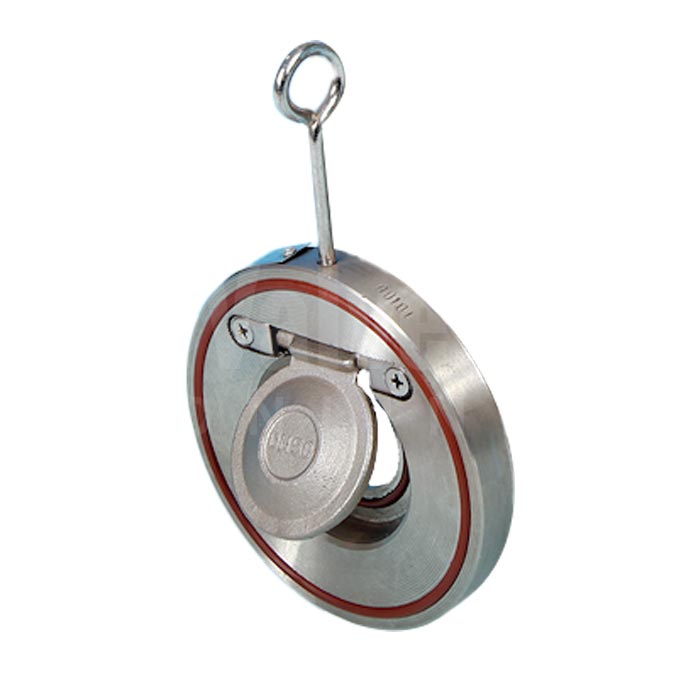

Stainless Steel Swing Check Valve Wafer Pattern

  • Swing Check Valve
  • Stainless Steel body
  • Wafer Pattern
  • Sizes: 2" to 10"
  • Temperature: 0°C to 150°C
  • Pressure rating: 16 Bar
From £61.05
SKU: CV5171 Availability: Available
In stock
SKU CV5171

Stainless Steel Swing Check Valve Wafer Pattern

Stainless Steel Swing Check Valve Wafer Pattern offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded valve with Stainless Steel body and Viton O ring seal.

Installed either vertically (upwards only) or horizontally.

Key features:

  • Available in sizes: 2" to 10".
  • Temperature range: 0°C to 150°C.
  • Pressure rating: 16 Bar.
  • Low head loss.
  • Space saving design.

For full details please download the accompanying datasheet.

Download our technical PDF datasheet here

More Information
End Connection Wafer Pattern
Design / Type Wafer Check, Swing Check
Industry / Approvals HVAC
Body Material Stainless Steel
Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
Face to Face Dimension N/A
Manufacturer VOLT

The following downloads are available for the Stainless Steel Swing Check Valve Wafer Pattern:

Stainless Steel Swing Check Valve Wafer Pattern Datasheet
