Stainless Steel Spring Check Valve High Pressure Screwed BSP

  • Spring Check Valve
  • High Pressure
  • Stainless Steel body
  • Screwed BSP
  • Sizes 1/2" to 2"
  • Max pressure 63 Bar
From £20.33
SKU: CV4680 Availability: Available
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
▲ Please Select Options Above ▲

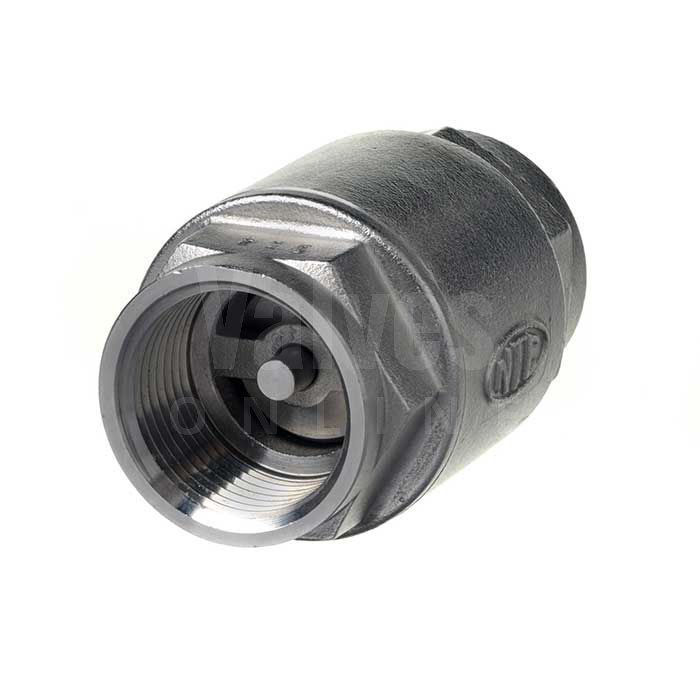

Stainless Steel Spring Check Valve High Pressure Screwed BSP

Our Stainless Steel Spring Check Valve High Pressure Screwed BSP offers excellent sealing capabilities for high pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. A reliable and robust, heavy duty non return valve featuring a 2 piece maintainable body, PPL body seal and metal seat.

When fitted with a Stainless Steel basket the valve becomes a fully functional Foot Valve.

Installed either vertically (upwards only) or horizontally.

Key features:

  • Available in Screwed BSP, sizes: 1/2" to 2".
  • Temperature range: -25°C to 260°C.
  • Pressure rating: up to 63 Bar.

For full details please download the accompanying datasheet.

Datasheet:

 Stainless Steel Spring Check Valve High Pressure Screwed BSP Datasheet

More Information
End Connection BSP
Design / Type Spring Check
Industry / Approvals High Pressure
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Manufacturer VOLT

The following downloads are available for the Stainless Steel Spring Check Valve High Pressure Screwed BSP:

 Stainless Steel Spring Check Valve High Pressure Screwed BSP Datasheet
