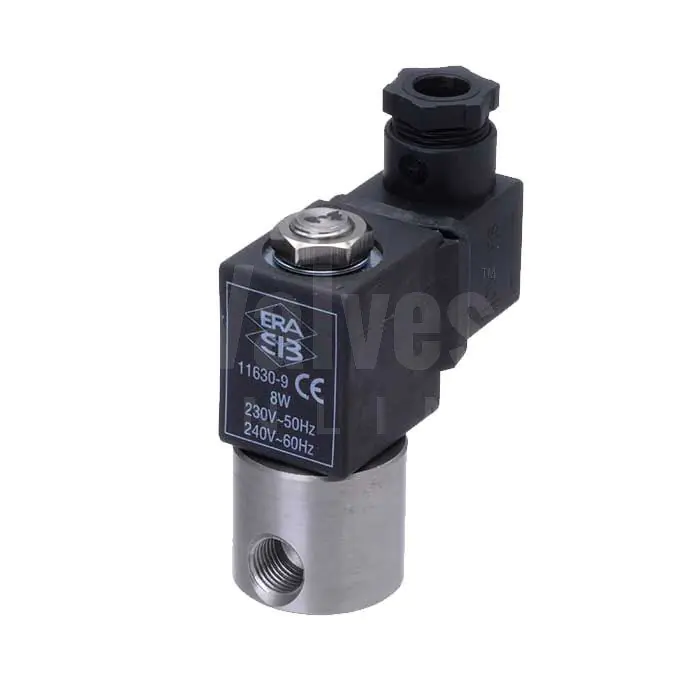

Stainless Steel Solenoid Valve 1/8" Mini Direct Acting

  • Direct Acting, normally closed
  • Stainless Steel body
  • FKM seals
  • Sizes: 1/8"
  • Media temperature: 80 °C
  • Pressure rating 0-20 Bar
  • Voltage: 24V DC, 24V AC, 110V AC and 230V AC
  • Suitable for use with neutral gasses, liquids and light oils
From £32.83
SKU: SV5216 Availability: Available
In stock
SKU SV5216

Stainless Steel Solenoid Valve 1/8" Mini Direct Acting

Our Stainless Steel Solenoid Valve 1/8" Mini Direct Acting is designed for use with neutral gases, liquids and light oils. Applications that include: shut-off, dosing, filling, ventilating and technical vacuum..

A normally closed, mini direct acting solenoid valve consisting of a Stainless Steel body and FKM seals.

Key features:

  • Media: Vacuum, air, water and light oil.
  • Available in sizes: 1/8".
  • Voltage: 24V DC, 24V AC, 110V AC and 230V AC.
  • Ambient temperature: -10 °C to +50 °C
  • Media temperature: 80 °C (FKM).
  • Operating pressure: *subject to selection.

Supplied with cable plug.

Download the PDF datasheet for the Stainless Steel Solenoid Valve 1/8" Mini Direct Acting.

*To help you select the correct solenoid valve please use the data found on our Technical Information tab.

More Information
Process / Industry General Purpose
Body Material Stainless Steel
Design 2 Way
Port Size 1/8"
Manufacturer VOLT

The following downloads are available for the Stainless Steel Solenoid Valve 1/8" Mini Direct Acting:

Stainless Steel Solenoid Valve 1/8" Mini Direct Acting Datasheet

Select your solenoid valve using the following information:

Port:Orifice:Kv (Ltr / Min)Min Pressure Rating (Bar)AC Max Pressure Rating (Bar)DC Max Pressure Rating (Bar)
1/8" 1.6mm 1.6 0 20 17
  2.4mm 2 0 9 5
