Stainless Steel Ball Valve 3 Piece Heavy Duty Full Bore

Stainless Steel Ball Valve 3 Piece Heavy Duty Full Bore

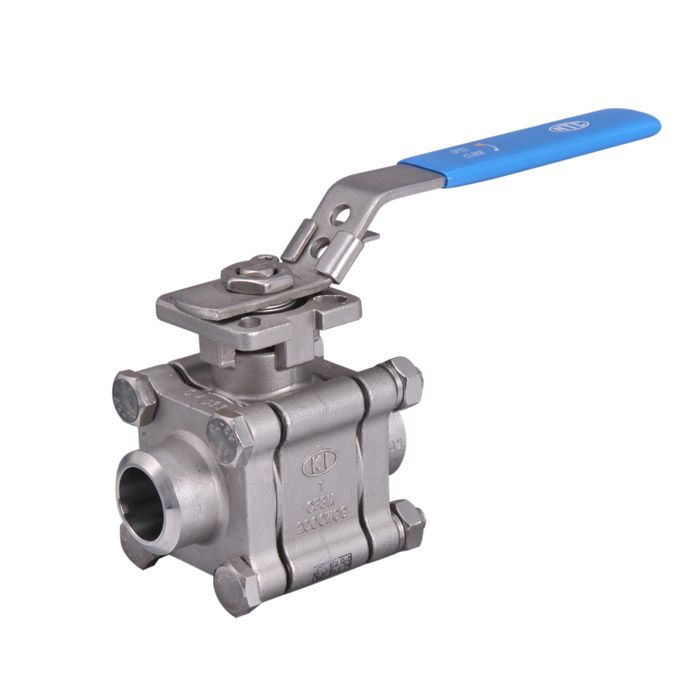

A Stainless-Steel Ball Valve, 3 Piece fully maintainable heavy duty ball valve. Used for manual isolation or for actuation utilising the ISO Top mounting platform.

The valve benefits from a unique encapsulated body bolt design and ease of maintenance.

This 3 piece ball valve features TFM 4215® (25% Carbon Filled TFM) Ball Seats, Grafoil Body Seals and Stem Packing. Ta-Luft self-adjusting stem sealing. Nace MR-0175 compliant.

ISO 15848 Certified. EN14432 Certified. DNV & Lloyds approved.

The valve is Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5 and Anti-static device fitted for Ball-Stem-Body. ATEX approved.

Key Features:

• Stainless Steel Body
• Screwed BSP, Socket Weld, Butt Weld or NPT
• Sizes: 1/4" to 2".
• TFM 4215 Seats 25% Carbon Filled
• Temperature range: -20 °C to +200°C
• Operating pressure: 1/2" to 1" 2000 PSI and 1 1/4" to 2" 1500 PSI
• Insulated grip, lockable lever handle
• Movement: 90° turn
• ATEX approved
• Fire safe certified to API607 (5th edition)

Options available on request:

• 50% S/S Filled, PTFE Ball Seats
• 30, 60 and 90 Deg V-Ball for modulation duties.
• 100mm high Spindle Extension for Insulation & Steam Actuation
• Upstream Ball and Cavity Relief hole drilled into Ball
• Direct Mount Spring Handle/Lever
• Fabricated Heating Jacket

Datasheet:

 Stainless Steel Ball Valve 3 Piece Heavy Duty Full Bore Datasheet
