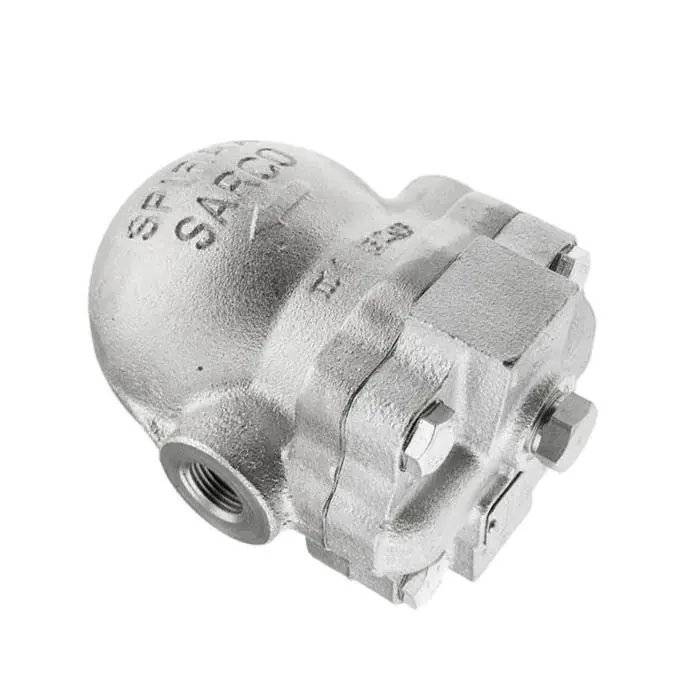

Spirax Sarco FTGS14HC High Capacity Ball Float Steam Trap

  • Ball Float Steam Trap
  • Integral automatic air vent
  • Stainless Steel body with SG Iron cove
  • PN16 Screwed BSP
  • Size 1"
  • 4.5 bar (FTGS14-HC-4.5)
  • 10 bar(FTGS14 HC-10)
  • 14 bar (FTGS14 HC-14)
From £473.54
SKU: ST5387 Availability: Available
In stock
SKU ST5387

Spirax Sarco FTGS14HC High Capacity Ball Float Steam Trap

Spirax Sarco's FTGS14HC High Capacity Ball Float Steam Trap is designed to offer perfect condensate drainage and air venting for process, heating and mains drainage applications. It's also one of the most popular mechanical steam traps in the world!

Benefits from an integral automatic air vent (TV) with flow direction right to left as standard. Stainless Steel body with SG Iron cover, in PN16 Screwed BSP. Available in 4.5 bar (FTGS HC 14-4.5), 10 bar (FTGS14 HC -10) and 14 bar (FTGS14 HC -14).

Typical applications include heat exchangers, separator drainage and rotating drying cylinders.

Key features:

  • Low cost of ownership: Stainless Steel base for longer life, low maintenance and minimal system downtime.
  • Easy to replace: dimensionally interchangeable with the FT14. No live steam loss Achieved by self-aligning valve and water seal.
  • Erosion resistant: Improved design with simplified flow paths to reduce erosion.
  • Effective condensate drainage: modulating valve orifice mechanism that provides complete and immediate condensate removal under all positive pressure load conditions.
  • Quick start-up: integral air vent for maximum venting of air to improve productivity.
  • High quality product: improved materials and surface finish offer a high quality product Impact resistant Strong float construction guaranteed against waterhammer.
  • Available in sizes: 1".
  • Maximum temperature: 250°C.
  • Gasket material – Graphite.

Download our technical PDF datasheet for the Spirax Sarco FTGS14HC High Capacity Ball Float Steam Trap.

More Information
Category Float
Function/Use Process
Capacity 760kg/h to 1060kg/h
End Connection Screwed
Body Material Stainless Steel
Size 1"
Manufacturer Spirax Sarco

The following downloads are available for the Spirax Sarco FTGS14HC High Capacity Ball Float Steam Trap:

Spirax Sarco FTGS14HC High Capacity Ball Float Steam Trap Datasheet
