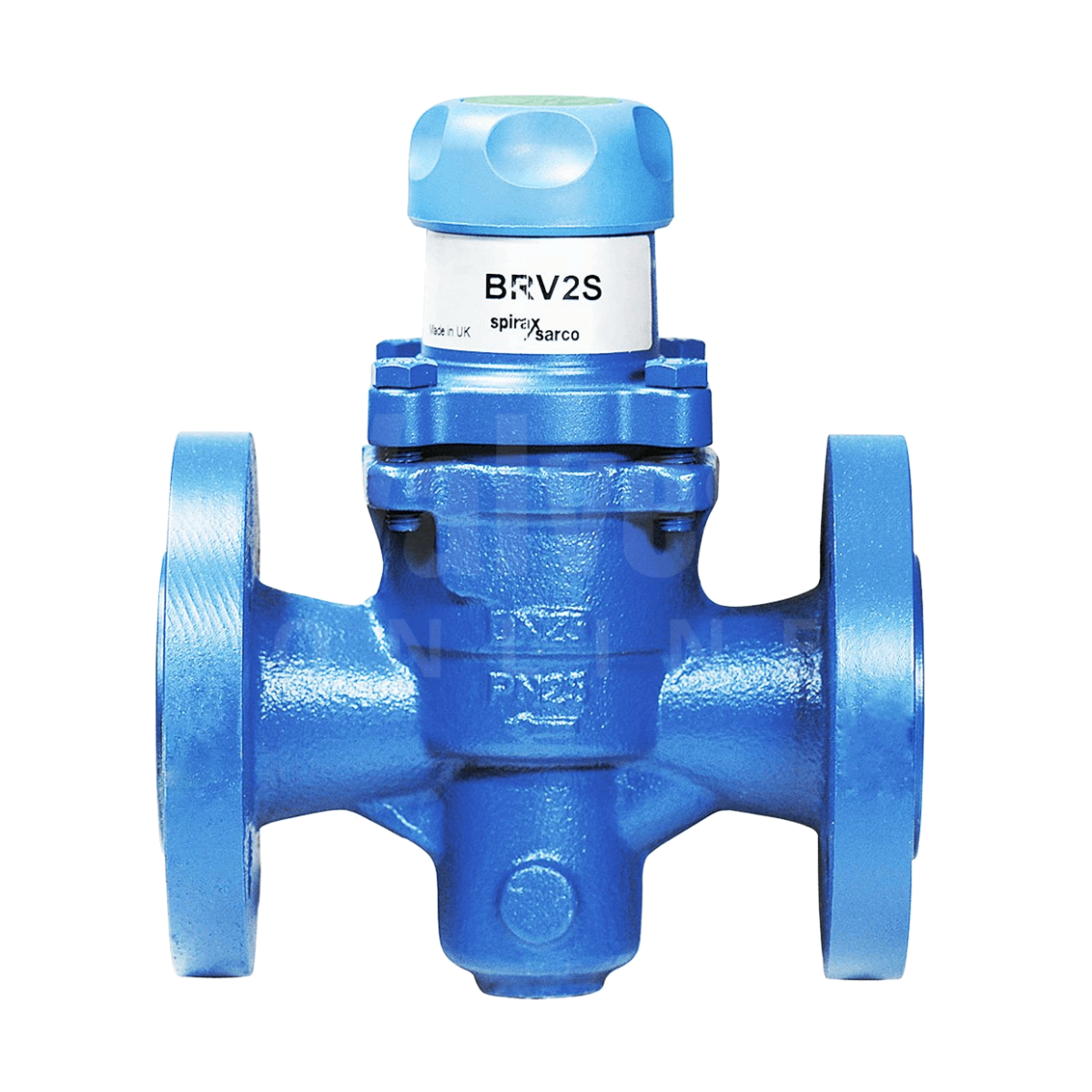

Spirax Sarco Flanged PN25 BRV2S Direct-Acting Pressure Reducing Valve

The Spirax Sarco Flanged PN25 BRV2S Pressure Reducing Valve is a direct acting pressure reducing valve with stainless steel bellows and SG Iron body. The valve is suitable for steam and gases like, compressed air.

The BRV2S is supplied Flanged PN25 in three sizes (DN15, DN20 & DN25), each with the option of downstream pressure control, obtained with one of three colour coded springs:

• Grey 0.14 to 1.7 bar g (2.03 to 24.65 psi g)

• Green 1.40 to 4.0 bar g (20.30 to 58.00 psi g)

• Orange 3.50 to 8.6 bar g (50.75 to 124.70 psi g)

All information can be found on the attached data sheet.

KEY DETAILS & FEATURES:

• SG Iron body
• Flanged PN25
• Sizes DN15 to DN25
• Maximum temperature: 210°C @ 19 bar
• Reducing ratio: 10:1
• Pressure range: PN25 rated
• Adjustment levels:
• Grey 0.14 to 0.17 Bar
• Green 1.4 to 4 Bar
• Orange 3.5 to 8.6 Bar
• For use with steam, compressed air and gas
• Compact size, with a single spring mechanism, ideal for small processes
• Stainless Steel valve and seat assembly provides high wear resistance under low load conditions
• Anti-vibration adjustment handwheel with colour indication of control spring range
• Alloy spring housing with four bolts for easy in-line removal, giving access to internals
• Information can be found on the spring range ID disc located on the adjustment handwheel
