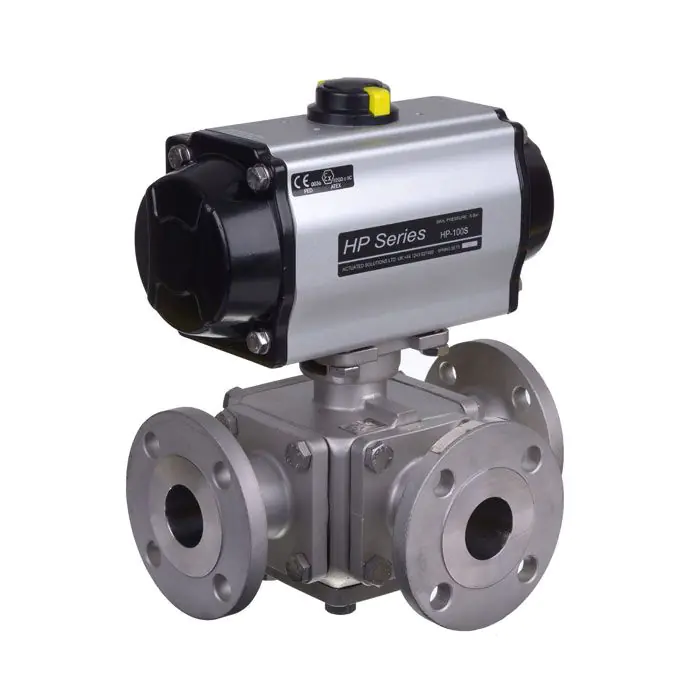

Pneumatic Actuated 3 Way Flanged Stainless Steel Ball Valve
Pneumatic Actuated 3 Way diverting Flanged PN16 or ANSI 150 Stainless Steel Ball Valve provides safe operation for both general and industrial chemical applications, offering superior performance and reliability. A pneumatically actuated 3 way full bore valve with Stainless Steel body and reinforced PTFE seat.
Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Available in L or T Port, PN16 or ANSI 150, sizes: 1/2" to 4"
Pressure range: Up to 1000 PSI
Temperature range: -20°C to 200°C.
Features a blow-out proof stem.
All VOLT Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
