Resistance Thermometer Sensor PT100

  • With Cable Plug
  • Without Cable Plug 3000mm Lead
  • 1/2” BSP Process Connection
  • Neutral and Aggressive Fluids
  • Wetted Parts Stainless Steel 316
  • -50°C to 250°C
  • IP65
From £101.80
SKU: RTD500 Availability: Available
In stock
SKU RTD500

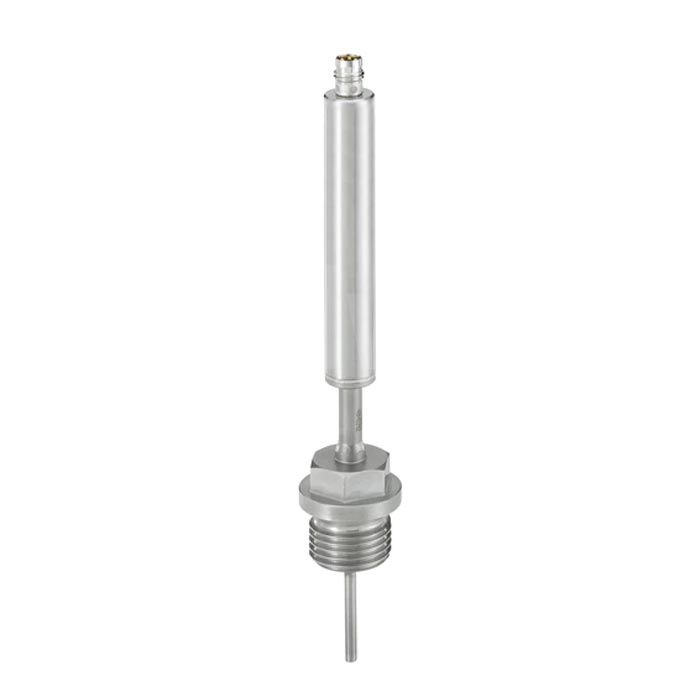

Resistance Thermometer Sensor PT100

Resistance thermometer (PT100) with process fitting and either industry standard DIN style cable plug or alternatively with a 1 metre PFA flexible lead wire.

A 3-wire, Class B PT100 element housed in a 6mm diameter rigid stem stainless steel sheath, available in standard lengths of 50, 100 or 150mm long.

The RTD has a 1/2" BSP process connection offering easy installation and replacement whilst maintaining reliability.

Typical applications:

  • Vessels and pipes
  • Heat exchangers
  • Industrial OEMs

Typical industries:

  • Brewing – monitoring / maintaining temperatures
  • Heating systems and processes

Key Features:

  • With Cable Plug
  • Without Cable Plug 3000mm Lead
  • 1/2" BSP process connection
  • Neutral and aggressive fluids
  • Wetted Parts Stainless Steel 316
  • -50°C to 250°C
  • IP65

Datasheet:

Resistance Thermometer Sensor PT100 Datasheet

More Information
Manufacturer VOLT

The following downloads are available for the Resistance Thermometer Sensor PT100:

Resistance Thermometer Sensor PT100 Datasheet
