Pneumatic Lubricator

Pneumatic Lubricator


Price on Application

For pricing and availability please contact us on:
01822 855 600.

Key Features
  • Pneumatic Lubricator
  • Built-in sight glass level indicator
  • Maximum supply pressure: 220 PSI
  • Sizes 1/8" to 1"

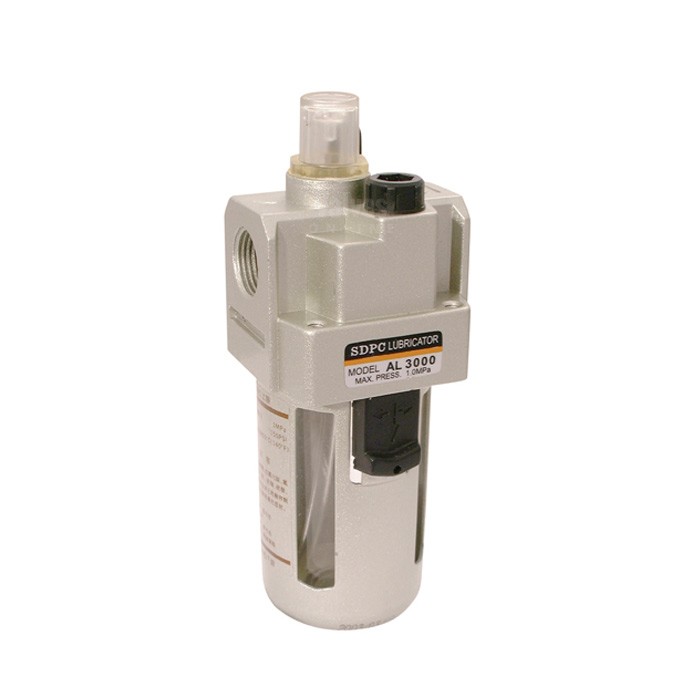

Pneumatic Lubricator

Pneumatic Lubricator with housing for air preparation systems - easy to adjust, fill and maintain. A fully automatic nebulising oil lubricator with built-in sight glass level indicator. Available in sizes 1/8" to 1".

Normally pneumatic equipment does not require additional lubrication. However in specific conditions where lubrication is needed this lubricator bowl is used. Filled with oil, air is passed through the lubricator where it automatically nebulises the oil via a venturi, which deposits the oil at pre-determined levels.The lubricator should be ideally mounted as close as possible to the components which require lubrication.

Key Features

  • Maximum supply pressure: 220 PSI
  • Operating pressure: 140 PSI, regulating range 5 - 120 PSI
  • Ambient temperature range: -10° -to- +60°
  • Available sizes: 1/8" (500 l/min) up to 1" (5000 l/min)
  • Recommended oil: 5-10 Weight Hydraulic Oil
  • Polycarbonate bowl
  • Zinc, metal bowl guard


 Pneumatic Lubricator Datasheet

Technical Attributes

Manufacturer VOLT
Type Lubricator
