Pneumatic Actuated Stainless Steel Economy Flanged PN16 Ball Valve

Details

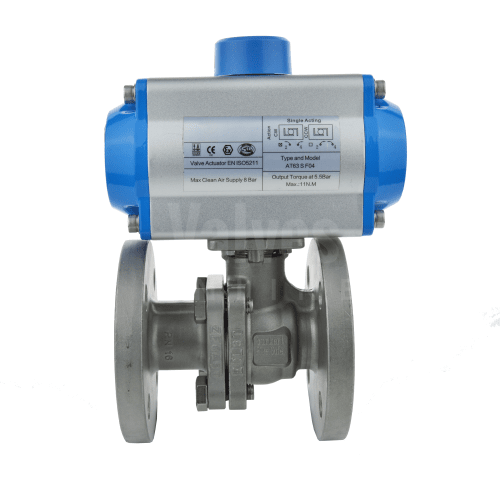

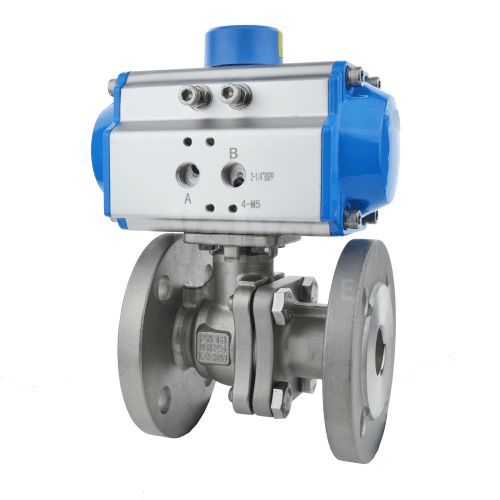

Economy Pneumatic Air Operated Flanged PN16 Stainless Steel Ball Valve

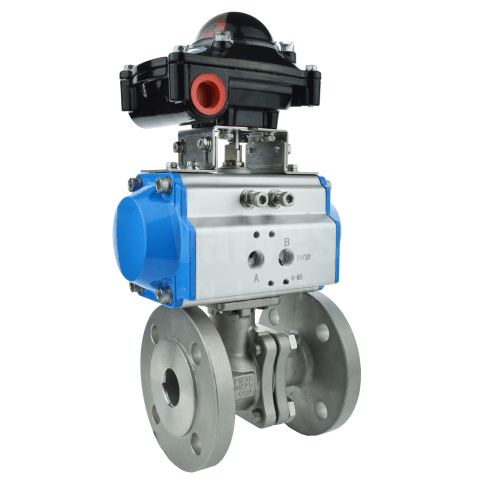

A 2-way stainless steel, pneumatically actuated flanged ball valve with R-PTFE ball seats is suitable for many automatic process and industrial applications. Used to isolate a pipeline via a powerful pneumatically operated actuator that fits on top of the valve. Offered in either Single (spring closed or open) or Double acting and can be supplied with a range of configurable modular options for your automation process, including limit switches, solenoid valves and positioners.

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.

Comprised of ATEX approved components

Key Features:

• Easy and Low-cost Automation
• Available in sizes: 1/2" to 4"
• Valve suitable for many liquids and gases even semi corrosive fluids
• PN40/16 Flanged end connections
• Modular Design
• Works well with selected pilot solenoid and switchbox
• Pressure range: PN40 Rated 1/2” to 2” PN16 Rated 2 1/2” to 4”
• Temperature range: -20°C to 200°C
• Blow out proof stem
• Anti-Static devices for Ball-Stem-Body. ATEX approved.

Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements, offering complete confidence as an integral part of your automatic system. During build up all actuated packages are rigorously inspected, and 100% factory tested prior to dispatch.

Datasheet:

 Economy Flanged Stainless Steel Ball Valve With Pneumatic Actuator Datasheet
