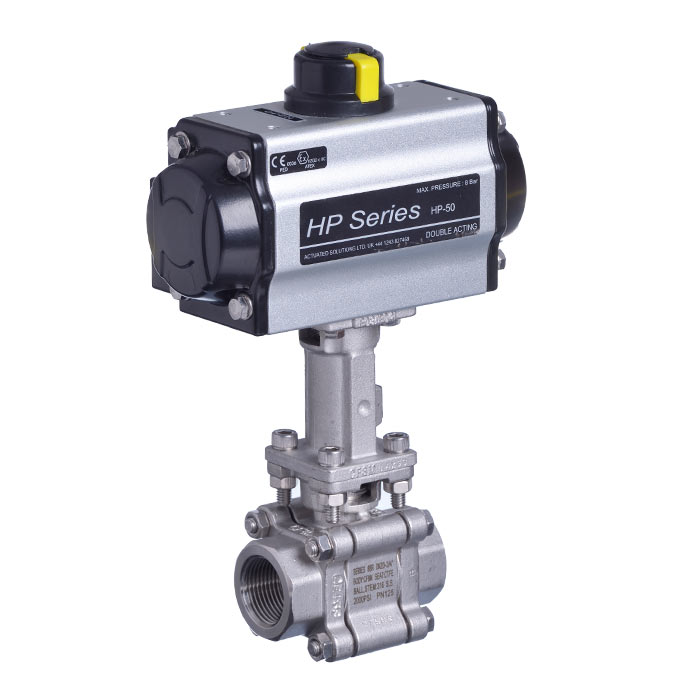

Pneumatic Actuated High Temperature Screwed Ball Valve
A high temperature Pneumatically actuated screwed ball valve suitable for more arduous applications. The full bore, 3 piece valve comes in stainless steel with options for various end connections, Carbon filled reinforced PTFE seat and seal.
The valve is fitted to a powerful pneumatic spring return or double acting actuator via a heat dissipating extension (TSM).
Configurable options include limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Available in Screwed BSP, Socket Weld or NPT, sizes: 1/2" to 2" (subject to configuration).
Pressure range: Up to 2000 PSI (subject to configuration).
Temperature range: -20°C to 200°C.
Features a blow-out proof stem.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
