ATEX 90D Pneumatic Actuated ANSI 300 Ball Valve

  • Fire safe seats and Anti static device API607
  • ATEX approval on Valve and Actuator
  • RPTFE Seat, Stainless steel body
  • ANSI 300#
  • Sizes from 1/2” – 6”
  • Spring close or double acting actuator options
From £251.96
SKU: PX5053 Availability: Available
In stock
SKU PX5053

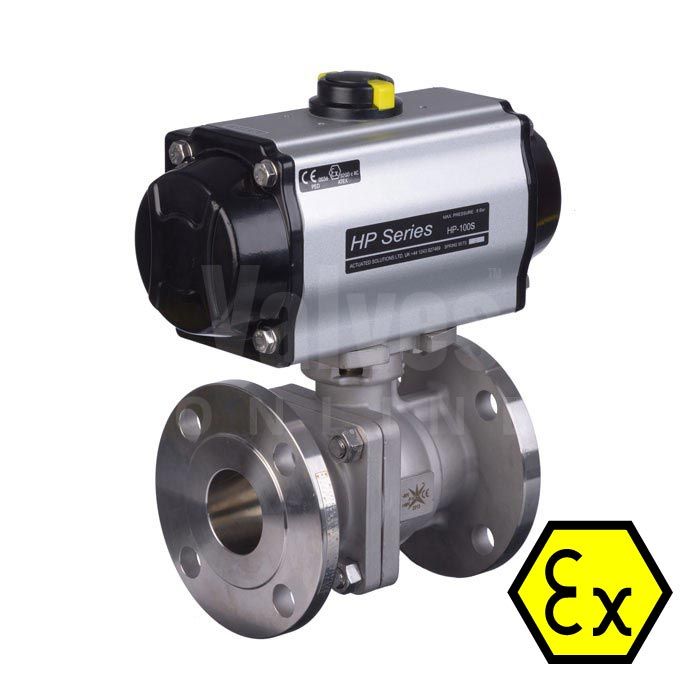

ATEX 90D Pneumatic Actuated ANSI 300 Ball Valve

Our Pneumatic Actuated Mars Ball Valve 90D Fire Safe Anti Static ANSI 300 provides safe operation for both general and industrial chemical applications and hazardous environments. Assembled from ATEX approved components, a full bore high performance valve with Stainless Steel body, reinforced RTFE ball seat, Graphite filled body and neck seals.

A combination of a powerful pneumatic ATEX approved actuator, fitted to a series 90D heavy duty high performance, flanged ANSI 300 ball valve. The valve comprises of a split 2- piece body with seals that are Fire Safe Certified to API 607 4th Edition and fitted with an Antistatic spring-loaded device. The Pneumatic actuator offers single acting (fail closed or open) or Double acting options. Sized on 5.5 bar pilot air supply with 30% added safety factor. This unit gives you an exceptional combination, that’s trouble free.

ATEX / PED certified actuator and CE marked approved. SIL2 rated.

We offer various accessories that can be fitted onto the actuator such as I.S or EX switch boxes, solenoids and positioners, all suitable for hazardous areas.

Key features:

  • Available in ANSI 300, sizes: 1/2" to 6".
  • Temperature range: -20 °C to 180°C.
  • Operating pressure: ANSI 300 Rated.
  • Fully maintainable featuring a blow-out proof stem.
  • Fire Safe certified to API 607 4th Edition.
  • ATEX approved components.

All Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.

Download the PDF datasheet for our Pneumatic Actuated Mars Ball Valve 90D Fire Safe Anti Static ANSI 300.

More Information
Manufacturer Mars
End Connection Flanged ANSI 300
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Design 2 Piece, Full Bore, Fire Safe
Industry / Approvals ATEX

The following downloads are available for the ATEX 90D Pneumatic Actuated ANSI 300 Ball Valve:

ATEX 90D Pneumatic Actuated ANSI 300 Ball Valve Datasheet

The following certs and approvals are available to download for the Mars Series 90D:

ATEX 94/9/EG Cert

ATEX Pneumatic Actuator Cert

RTFE Cert

SIL Cert
