Pneumatic Actuated Economy Screwed 2 Way Brass Ball Valve

Details

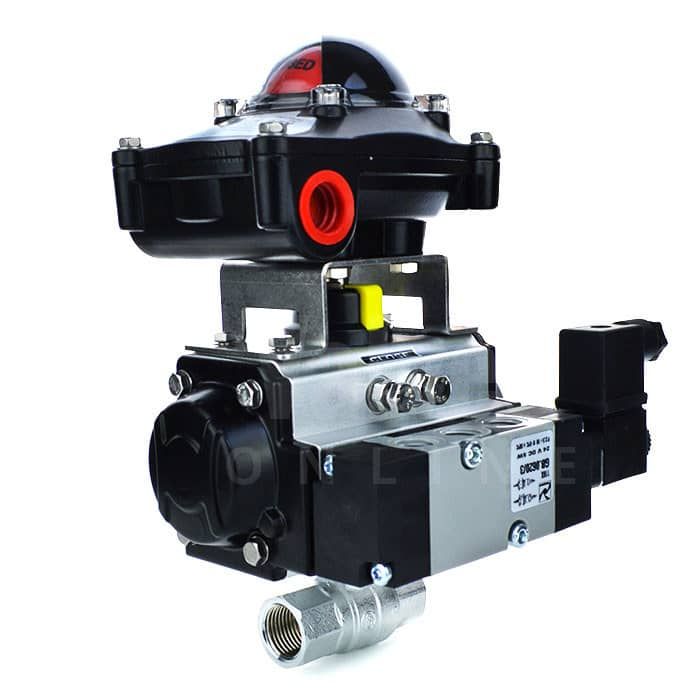

Pneumatic Actuated Economy Screwed 2 Way Brass Ball Valve

Our Pneumatic Actuated Economy Screwed 2 Way Brass Ball Valve is suitable for general purpose, HVAC and industrial applications; on/off duty, water isolation, water treatment and compressed air. A pneumatically actuated Nickel plated Brass ball valve with PTFE seat.

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.

Key features:

• Available in Screwed BSPP, sizes: 1/2" to 2"
• Pressure range: Up to 40 Bar (subject to configuration)
• Temperature range: -20°C to 95°C

Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.

Datasheet:

 Pneumatic Actuated Economy Screwed 2 Way Brass Ball Valve Datasheet

 Pneumatic Actuator Datasheet

 Economy Pilot Solenoid Datasheet

 Switchbox Datasheet
