PVC-U & ABS Ball Valves

The two most predominant materials for valves frequently asked for are Unplasticised Polyvinyl Chloride (PVC-U) and Acrylonitrile - Butadiene – Styrene (ABS).Below is a brief and useful description on both materials:
PVC-U
PVC-U is the most widely used of all plastics for pipe installations, offering rigidity, versatility and being suitable for both below or above the ground.
PVC-U has an excellent chemical resistance, allows the safe transportation of many acids, alkalis and chemical concentrates without fear of corrosion and environmental pollution.
It is odourless and tasteless, therefore suitable for conveying potable water, food or dairy products at temperatures from 0ºC to 60ºC. PVC-U valves are lightweight and easy to install using cold solvent welded joints which require no special tools.
PVC-U Ball valves are available from Valves Online to operate Manually, Electrically or Pneumatically
Offered in both Double Union Metric and Imperial Solvent Socket or Threaded ends.
TYPICAL APPLICATIONS:
- Acids & Alkalis
- Effluents
- Potable water
- Chemical processing
- Effluent Treatment
ABS
ABS is a strong and rigid pressure piping system. Offering exceptional toughness renowned for its high impact strength and durability. Temperatures range from -40ºC to 80ºC at pressures up to 15 bar.
ABS is especially useful at sub-zero temperatures. ABS is a non-toxic plastic so it’s good for high purity applications, food stuff, soft drinks and can handle abrasive slurries.
ABS pipe systems are lightweight, rigid, and easy to install. Joints are made using solvent cement and require no special tools.
ABS Ball valves are available from Valves Online to operate Manually, Electrically or Pneumatically
Offered in both Double Union Metric and Imperial Solvent Socket or Threaded ends.
TYPICAL APPLICATIONS:
- Chilled Water
- Boosted cold water
- Potable water
- Low temperature cooling
- De-mineralised water
- Vacuum systems
- Waste water
STOCK
Manual and actuated valves are stocked with various end connections. Our valves are manufactured in Europe and hold all relevant approvals.
Quality
Our PVC-U and ABS range of ball valves are quality products and proven to excel above other historical brands and are manufactured in Europe.
PRICING
Our pricing reflects our commitment to supply PVC-U and ABS into the UK market and we are confident we will not be beaten on price or delivery.
OTHER MATERIALS
In addition to the PVC-U and ABS we also offer on short lead times, ball valves in PVC-C, PVDF and PP-H
OTHER RELATED PRODUCTS
Economy Ball Valves: manual and actuated
Butterfly Valves: manual and actuated
Diaphragm Valves: manual and actuated
We also supply Plastic Check Valves, Solenoid Valves, Controls/Instrumentation and Fittings. Click here to view our full range.
For more information or for any technical advice please contact our technical sales team: sales@valvesonline.co.uk Tel: 01822 855600
Share this post
Related Products
-
EXTREME PVC-U Ball Valve
From £29.12SKU: BV5546 Availability: AvailableEXTREME PVC-U Ball Valve
From £29.12SKU: BV5546 Availability: Available- PVC-U Manual Ball Valve
- PVC-U Body
- EPDM or FPM Seals, PTFE Seats
- PN10 Pressure Rated
- 10°C to 60°C Temperature Rated
- Sizes: DN10 to DN90 (1/2" to 3")
- Imperial Solvent Socket, Metric Solvent Socket, BSP Female Threaded or Flanged End Connections
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- Flanged & FPM seals on factory lead time
-
Electric Actuated Economy PVC Ball Valve
From £269.75SKU: EE4283 Availability: AvailableElectric Actuated Economy PVC Ball Valve
From £269.75SKU: EE4283 Availability: Available- Economy Electric Actuated
- High performance PVC Ball Valve
- EPDM / PTFE seals, seats
- Imperial, Metric or BSP
- Sizes 1/2" to 2 1/2", 20mm to 110mm and 1/2" to 4"
- Pressure range: 10 Bar
-
Pneumatic Actuated Industrial PVC Plastic Butterfly Valve
From £302.19SKU: PA4268 Availability: AvailablePneumatic Actuated Industrial PVC Plastic Butterfly Valve
From £302.19SKU: PA4268 Availability: Available- Pneumatic Actuated PVC-U Butterfly Valve – Industrial Range
- 2”-10”, D50-D225
- PVC-U Disc and EPDM Liner
- Corrosion Resistant
- Polypropylene Body - Resistant to Impact and UV Radiation
- Fits between PN10/16 Flanges
- Pressure Range PN10 Temperature up to 60°C
-

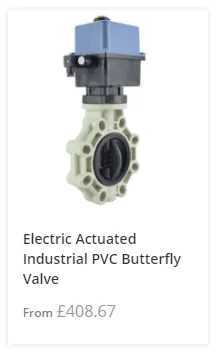

Electric Actuated Industrial PVC Butterfly Valve
From £449.54SKU: EA4268 Availability: AvailableElectric Actuated Industrial PVC Butterfly Valve
From £449.54SKU: EA4268 Availability: Available- Electric Actuated PVC-U Butterfly Valve – Industrial Range
- 2 1/2”- 8”, DN63 - DN225
- PVC-U Disc and EPDM Liner
- Corrosion Resistant
- Multi Voltage Actuator with Switches
- Fits between PN10/16 Flanges
- Pressure Range PN6/PN10 Temperature up to 60°C
-

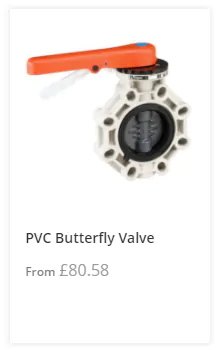

PVC Industrial Butterfly Valve
From £116.86SKU: BF4268 Availability: AvailablePVC Industrial Butterfly Valve
From £116.86SKU: BF4268 Availability: Available- PVC Industrial Butterfly Valve
- PP body & PVC-U disc
- Suitable to fit between PN10 flanges
- EPDM Seals
- Sizes 63-75mm up to 200-225mm
-
Burkert Type 3232 Manual Plastic Diaphragm Valve
From £61.50SKU: BU3232 Availability: AvailableBurkert Type 3232 Manual Plastic Diaphragm Valve
From £61.50SKU: BU3232 Availability: Available- Burkert Type 3232 Plastic Diaphragm Valve
- manually operated, 2/2 Way Diaphragm Valve
- Body material: PVC, Polypropylene (PP) or PVDF
- Seal material: EPDM or PTFE/EPDM
- Sizes: 20mm (Orifice: 15mm) to 63mm (Orifice: 50mm)
- End connections: True Union or Spigot (PP or PVDF)
-
Electric Actuated Extreme ABS Ball Valve
From £388.08SKU: EA5554 Availability: AvailableElectric Actuated Extreme ABS Ball Valve
From £388.08SKU: EA5554 Availability: Available- ABS Construction
- Imperial Solvent Socket, Metric Solvent Socket, BSP Female Threaded
- Sizes: DN10 (D16) up to DN50 (D63)
- EPDM or FPM Seals, PTFE Seats
- PN10 Pressure Rated
- -40 °C to 60 °C Temperature Rated
- Type 3003 Electric Actuator Operator
- 24V AC & DC, 110 & 230V Supply Options
- Optional extras include: Battery Backup failsafe
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- FPM seals on factory lead time
-
Extreme Pneumatic Actuated Ball Valve ABS Body
From £167.84SKU: PA5554 Availability: AvailableExtreme Pneumatic Actuated Ball Valve ABS Body
From £167.84SKU: PA5554 Availability: Available- Remote Isolating Flow in Liquid Systems
- 1/2” to 3", D20-D90
- ABS body
- PTFE Ball Seats, with EPDM or FPM seals
- Threaded BSP, Imperial & Metric Solvent Socket
- Antiblock System that Avoids Blockage
- Suitable for Aggressive Media
- Spring Return or Double Acting Actuator
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- FPM seals on factory lead time
-
Electric Actuated Extreme PVC-U Ball Valve
From £378.48SKU: EA5546 Availability: AvailableElectric Actuated Extreme PVC-U Ball Valve
From £378.48SKU: EA5546 Availability: Available- Type 3003 Electric Actuator Operator
- Imperial Solvent Socket, Metric Solvent Socket, BSP Female Threaded or Flanged End Connections
- Sizes DN10 (D16) up to DN80 (D90)
- PVC-U Construction
- EPDM or FPM Seals, PTFE Seats
- PN10 Pressure Rated
- 10 °C to 60 °C Temperature Rated
- Optional extras include: Battery Backup Failsafe
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- Flanged & FPM seals on factory lead time
-
Pneumatic Actuated Extreme PVC-U Ball Valve
From £174.10SKU: PA5546 Availability: AvailablePneumatic Actuated Extreme PVC-U Ball Valve
From £174.10SKU: PA5546 Availability: Available- Remote Isolating Flow in Liquid Systems
- 1/2” to 3", D20-D90
- PVC-U body
- PTFE Ball Seats, with EPDM or FPM seals
- Threaded BSP, Solvent Socket-Metric & Imperial, Flanged PN6/10
- Antiblock System that Avoids Blockage
- Suitable for Aggressive Media
- Spring Return or Double Acting Actuator
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- Flanged & FPM seals on factory lead time
-
EXTREME ABS Ball Valve
From £38.72SKU: BV5554 Availability: AvailableEXTREME ABS Ball Valve
From £38.72SKU: BV5554 Availability: Available- ABS Manual Ball Valve
- ABS Body
- FPM or EPDM Seals, PTFE Seats
- PN10 Pressure Rated
- -40°C to 60°C Temperature Rated
- Sizes: 1/2" to 2" & D20 to D63
- Metric Solvent Socket, Imperial Solvent Socket or BSP Female Threaded End Connections
- BSP, Imperial & Metric Solvent Socket with EPDM/PTFE seals in stock
- FPM seals on factory lead time
-
Burkert Type 2030 PVC Diaphragm Valve
From £224.00SKU: BU2030 Availability: AvailableBurkert Type 2030 PVC Diaphragm Valve
From £224.00SKU: BU2030 Availability: Available- Pneumatically Operated
- PVC-U diaphragm valve
- Metric socket weld or Flanged end connections
- Sizes D20-D63 / DN65-DN100
