Mars Ball Valve Series 50SN 3 Piece Hygienic Manual Only OD Weld End

  • Stainless Steel body
  • Three Piece, High Performance, Full Bore
  • Cavity filled PTFE seat
  • OD Weld End
  • Sizes: 1/2" to 4"
  • Temperature range: -20 °C to 180°C
  • Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI
From £44.68
SKU: BV5133 Availability: Available
In stock
SKU BV5133

Mars Ball Valve Series 50SN 3 Piece Hygienic Manual Only OD Weld End

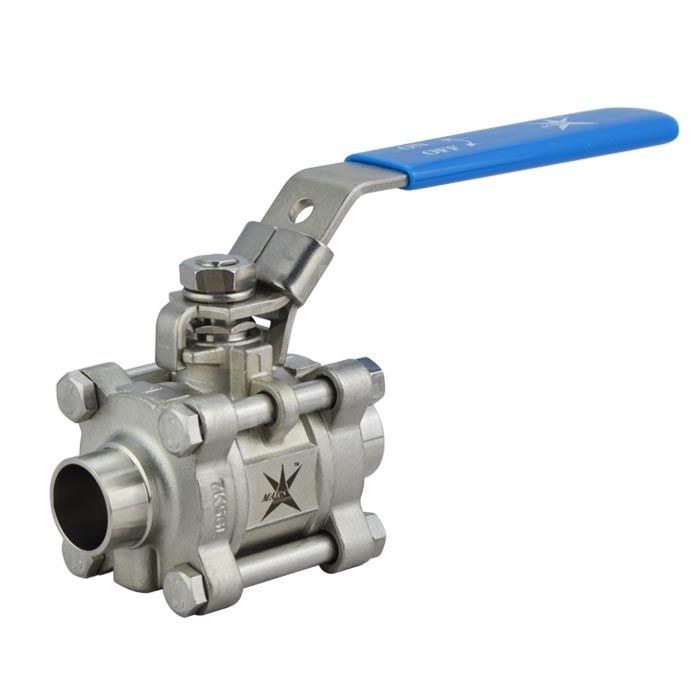

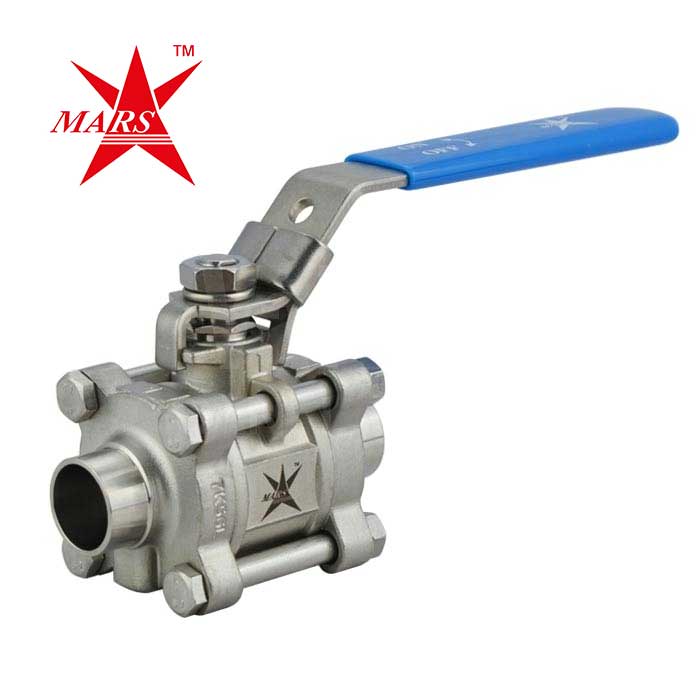

Our Mars Ball Valve Series 50SN 3 Piece Hygienic Manual Only OD Weld End is a fully maintainable hygienic three piece ball valve; particularly suited for manual on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore valve with Stainless Steel body and cavity filled PTFE seats.

Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.

Live loaded stem packing compensates for wear and fluctuations.

All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.

Key features:

  • Available in OD Weld End, sizes: 1/2" to 4".
  • Temperature range: -20 °C to 180°C.
  • Operating pressure: 1/2" to 2" 1000 PSI and 2 1/2" to 4" 800 PSI.
  • Insulated grip, lockable lever handle.
  • Movement: 90° turn.

All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.

Download our technical PDF datasheet here

More Information
Manufacturer Mars
End Connection Butt Weld OD
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design 3 Piece, Full Bore
Industry / Approvals Hygienic

The following downloads are available for the Mars Series 50SN:

Technical Datasheet

CE Cert

PED Cert

Food Cert

PTFE Cert

User Manual

The following certs and approvals are available to download for the Mars Series 50SN:

Technical Datasheet

CE Cert

PED Cert

Food Cert

PTFE Cert

User Manual
