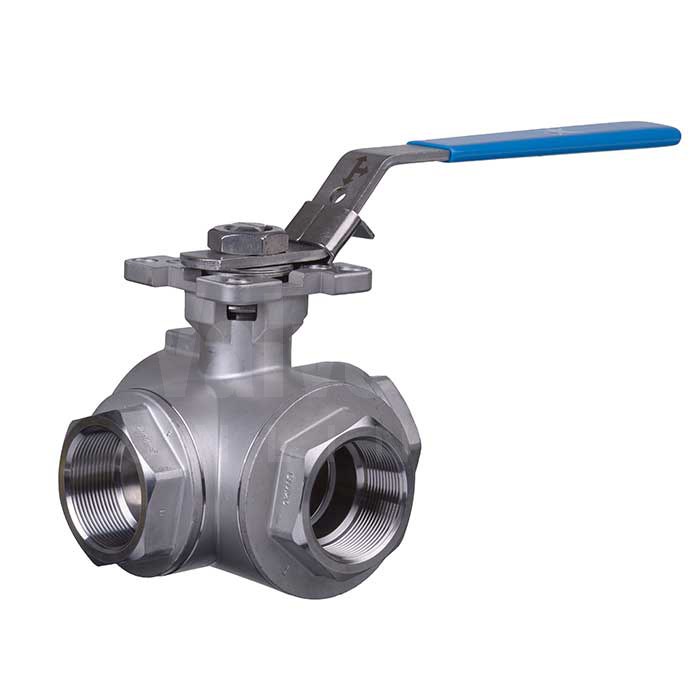

Mars Ball Valve Series 39 3 Way Direct Mount

  • Mars Ball Valve Series 39 3 Way Direct Mount
  • For general and industrial chemical applications
  • Body material: Stainless Steel
  • End connection: Screwed BSP or NPT
  • Three way, L or T port, reduced or full bore
  • PTFE seat and ISO mounting top
  • Sizes: 1/4" to 2"
  • Temperature range: -20 °C to 200°C
  • Operating pressure: 1/4" to 1" 1000 PSI and 1 1/4" to 2" 800 PSI
From £69.70
SKU: BV5129 Availability: Available
L Port
T Port
Reduced Bore
Full Bore
Reduced Bore
Full Bore
BSP
NPT
BSP
NPT
BSP
NPT
BSP
NPT
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
▲ Please Select Options Above ▲

Mars Ball Valve Series 39 3 Way Direct Mount

Our Mars Ball Valve Series 39 3 Way Direct Mount provides safe operation for both general and industrial chemical applications. A 3 way reduced or full bore valve with Stainless Steel body, PTFE seat and ISO mounting top for actuation.

Features a blow-out proof stem and self-adjusting stem sealing.

Key features:

  • Available sizes: 1/4" to 2".
  • Temperature range: -20 °C to 200°C.
  • Operating pressure: 1/4" to 1" 1000 PSI and 1 1/4" to 2" 800 PSI.
  • Insulated grip, lockable lever handle.
  • Movement: 90° turn.

Investment cast with low torque. Additional sizes and connections available on request (POA).

Datasheet:

 Mars Ball Valve Series 39 3 Way Direct Mount Datasheet

More Information
Manufacturer Mars
End Connection BSP, NPT
Body Material Stainless Steel
Seat Material PTFE
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Design 3 Way, Reduced Bore, Full Bore
Industry / Approvals General / Industrial / Process
Lever Lockable Manual lever
Temperature Range -20°C to 200°C
Pressure Up to 1000 PSI (1/4" to 1") & 800 PSI (1 1/4" to 2")
Actuatable? Yes - features ISO Mounting Pad

The following downloads are available for the Mars Ball Valve Series 39 3 Way Direct Mount:

 Mars Ball Valve Series 39 3 Way Direct Mount Datasheet

 User Manual

 User Manual MR

The following certs and approvals are available to download for the Mars Series 39:

 CE Cert

 PED Cert

 ATEX Cert

 SIL Cert

 PTFE Cert
