Cast Iron Rising Stem Gate Valve

Cast Iron Rising Stem Gate Valve

SKU
GV4653

in-stock Available to Order

Key Features
  • Cast Iron body
  • Cast Brass seat
  • Rising Stem
  • Flanged PN16
  • Sizes 2" to 12"
  • Pressure rating: PN10

Details

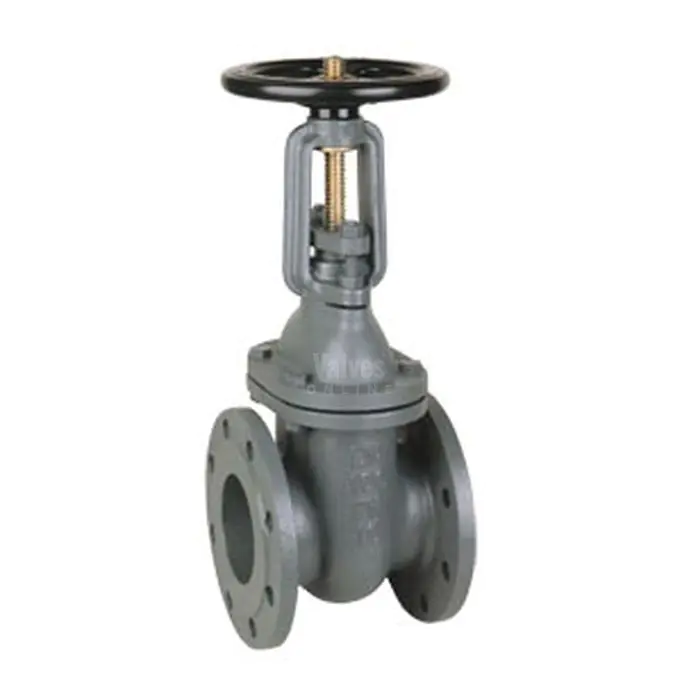

Cast Iron Rising Stem Gate Valve

Our Cast Iron Rising Stem Gate Valve suitable to fit between PN16 flanges and designed for general purpose, industrial and HVAC applications; isolation of hot water, cold water and oils. A flanged, handwheel operated manual gate valve with X20Cr13 rising stem, Cast Brass seats, AISI 304 Stainless Steel seat rings and GG25 Cast Iron body, wedge and yoke.

This versatile valve lends itself to a range of optional extras including position, indication,switching and actuation.

Key features:

  • Available in sizes: 2" to 12".
  • GG25 Cast Iron body with Cast Brass seat.
  • Temperature range: -10°C to 120°C.
  • Pressure rating: PN10.

An economical, maintenance free valve!

Datasheet:

 Cast iron Rising Stem Gate Valve Datasheet

Technical Attributes

End Connection Flanged PN16
Body Material Cast Iron
Size 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12"
Industry / Approvals HVAC
Design Handwheel Rising Stem
Manufacturer VOLT
Main Features
  • 2" to 12"
  • PN10 Rated
  • Rising Stem
