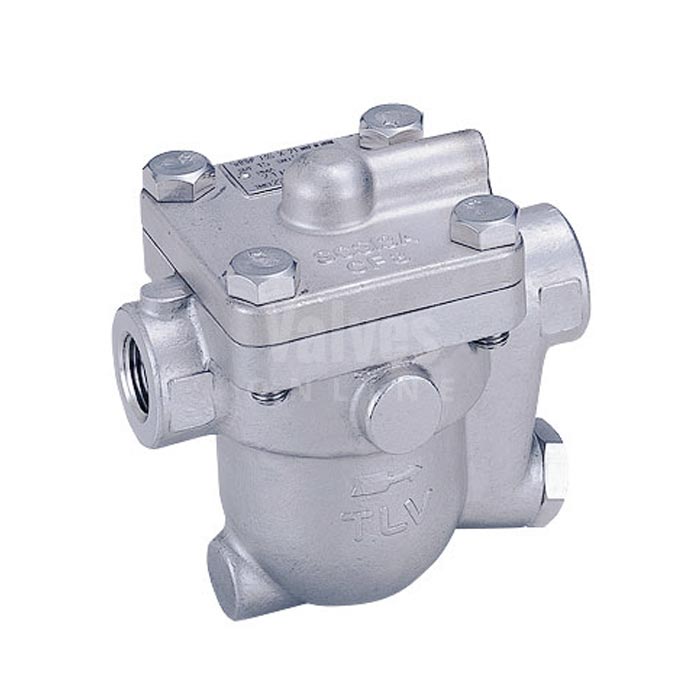

TLV J3SX Screwed Stainless Steel Free Float Steam Trap
From
£242.00
SKU: ST5308
Availability:
Available
01822 8556000161 480 5700sales@valvesonline.co.ukSign In
The J3SX Free Float steam trap offers continuous discharge thanks to the unique Free Floating Ball Design which increases the longevity and reliability of the Steam Trap thanks to only having 1 moving part. An integral strainer screen and X-Element (bi-metal) air vent to improve equipment productivity and reduce the need for maintenance. The compact design offers a large tolerance for differential pressures and back pressures for problem free operation.
Offered in Stainless Steel Body and Stainless Steel wetted parts with threaded BSP female end connections in ½”, ¾” and 1”. The changeable orifice plates provide suitability for differential pressures up to 2, 5, 10, 14 and 21 BarG. The steam trap is suitable for pressures up to 21 BarG, temperatures up to 220°C and discharge requirements up to 700kg/h.
TLV J3SX Screwed Stainless Steel Free Float Steam Trap Datasheet
Category | Free Float |
---|---|
Function/Use | Process |
Capacity | Up to 760kg/h |
End Connection | Screwed |
Body Material | Stainless Steel |
Size | 1/2", 3/4", 1" |
Manufacturer | TLV |
The following downloads are available for the TLV J3SX Screwed Stainless Steel Free Float Steam Trap:
TLV J3SX Screwed Stainless Steel Free Float Steam Trap Datasheet
