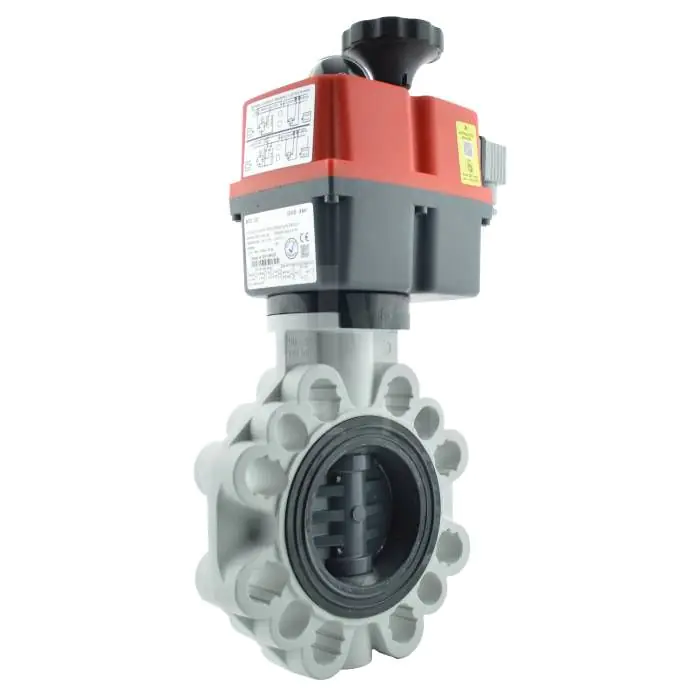

Electric Actuated Durapipe FK Butterfly Valve - PVC Disc - J+J Actuator

Electric Actuated Durapipe FK Butterfly Valve - PVC Disc - J+J Actuator

SKU
EA5600

in-stock Available to Order

Key Features
  • J+J J4C Electric Actuator
  • Aliaxis Durapipe (FIP) Butterfly Valve
  • PVC-U Disc
  • Glass Reinforced Polypropylene Body
  • EPDM or FKM Liner
  • 1 1/2" to 8"
  • On/Off or Modulating Options
  • Failsafe Battery Backup Option
  • Multi Voltage: 24 - 240 VDC / VAC

Details

Electric Actuated Durapipe Butterfly Valve with PVC-U Disc and J+J Actuator

This J+J electric actuated Durapipe (Aliaxis) butterfly valve with PVC-U Disc offers high performance and excellent flow characteristics, with minimal pressure drop over a wide range of fluid applications.

The body is manufactured from Glass Reinforced Polypropylene and the disc in PVC and offered in sizes from 1½” to 8". Options for either EPDM or FKM liners.

The oval holes in the valve body (DN50 to DN200) allow connection to the following flange drilling standards:

  • BS-EN 1092 PN10 (Formally BS4504 PN10)
  • ASA B16.5 class 150
  • BS10, Table D/E

Key Features:

  • J+J J4C Electric Actuator
  • Multi Voltage: 24 - 240 VDC / VAC
  • Failsafe Battery Backup Available as Option
  • Glass Reinforced Polypropylene Body
  • PVC-U Disc
  • EPDM or FKM Liner
  • 10 Bar Rated on Water at 20°C
  • Suitable for Temperatures up to 60°C
  • Full Flange Body
  • Sizes: 1 1/2" to 8"

Technical Attributes

Flange Accommodation PN10, ANSI 150, Table D, Table E
Body Material PP-GR
Size 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Disc Material PVC-U
Liner EPDM, FKM Viton
Manufacturer Durapipe
Main Features
  • PVC-U Disc
  • EPDM or FKM Liner
  • 1 1/2" to 8"
