Stainless Steel Pressure Reducing Valve

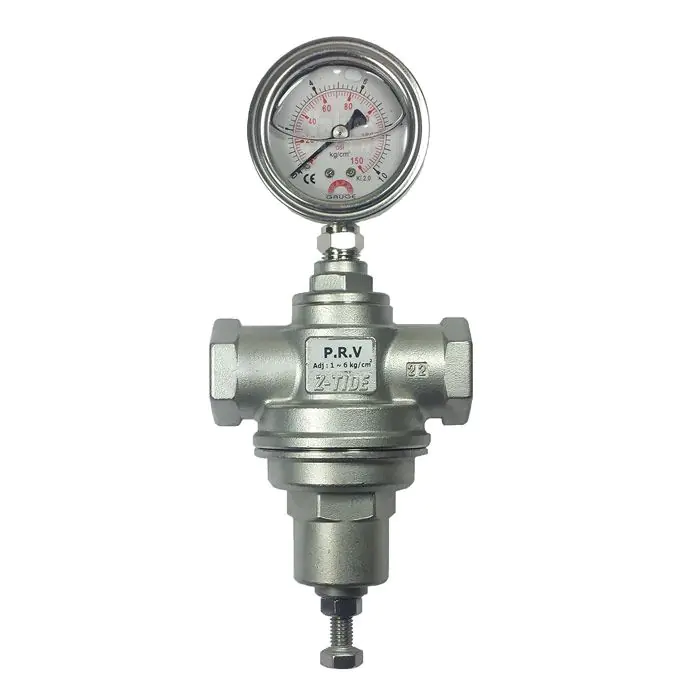

Our stainless steel pressure reducing valve features a stainless steel body, NBR seals, and is supplied with a pressure gauge that displays outlet pressure. Available in the following sizes: 1/2” (DN15), 3/4” (DN20), 1” (DN25), 1 1/2” (DN40), and 2” (DN50), with screwed BSPT connections.

The outlet pressure can be adjusted with an external adjustment screw for sizes ½”, ¾”, and 1”, and an internal adjustment screw for sizes 1 ½”, and 2”. Available with outlet pressures: 1.5 - 6 Bar, 4 - 10 Bar, and 8 - 13 Bar.

The maximum inlet pressure is 20 Bar for air, and 25 Bar for water. The valves have a working media temperature range of -15°C to +60°C maximum, maximum media viscosity of 40
centistokes, and pressure tested to 35 Bar.

The valve can be mounted in any position. Call 01822 855600 to discuss your project or application further with a member of our technical team or contact us via our online form.

KEY FEATURES:

• Stainless steel body
• NBR seals
• Sizes available: 1/2” to 2”
• Screwed BSPT connections
• Outlet pressure ranges available: 1.5 - 6 Bar, 4 - 10 Bar, and 8 - 13 Bar
• Pressure gauge displays outlet pressure
• Media temperature: -15°C to +60°C maximum
• Maximum inlet pressure for air: 20 Bar
• Maximum inlet pressure for water: 25 Bar
