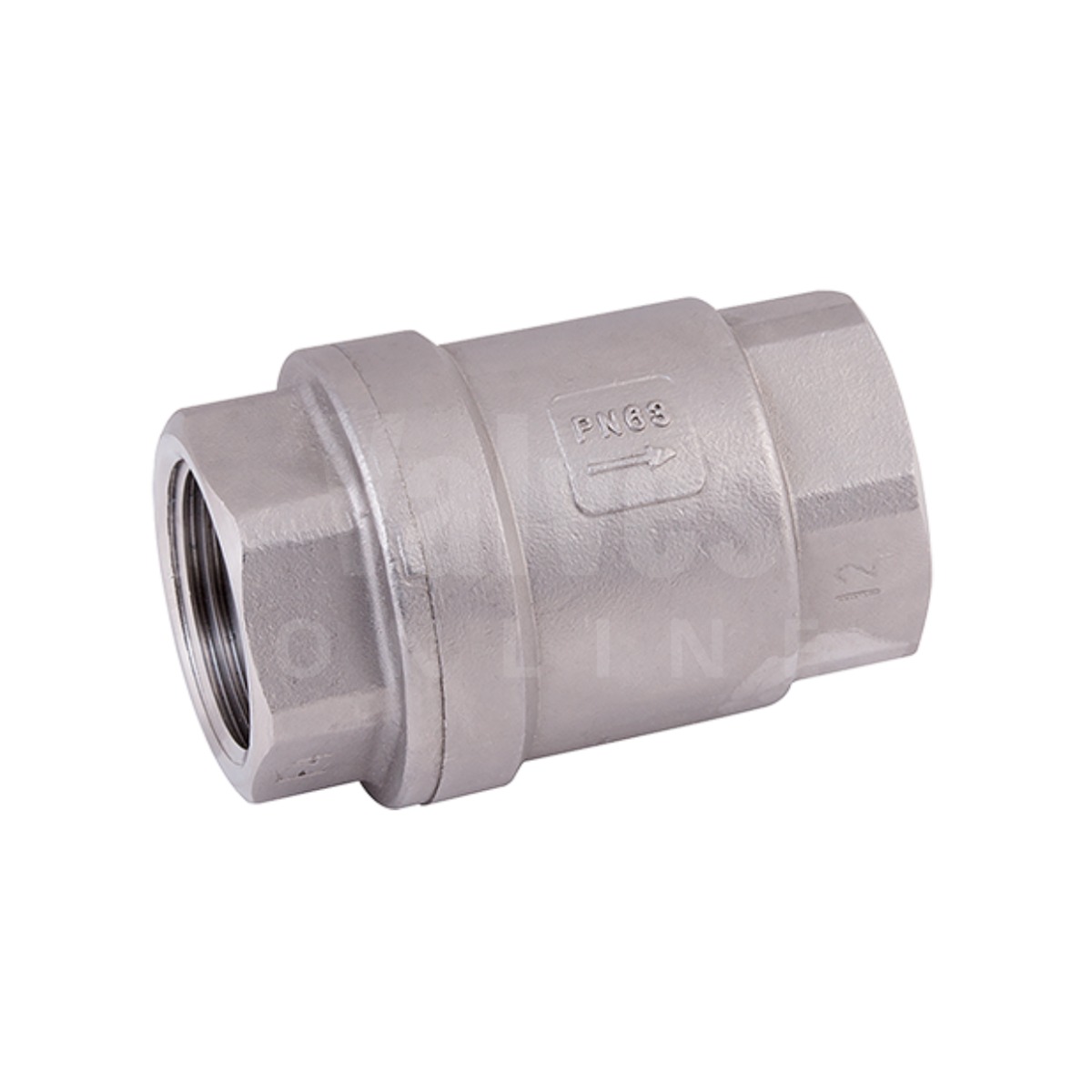

Economy Stainless Steel Spring Check Valve

The economy spring check valve features a CF8M stainless steel body and disc, a 316 stainless steel spring, and PTFE gasket. Available in sizes ¼” (DN8), 3/8” (DN10), ½” (DN15), ¾” (DN20), 1” (DN25), 1 ¼” (DN32), 1 ½” (DN40), and 2” (DN50), with BSP threaded connections. The valve can be installed in any position, has a working temperature range of -25°C to +180°C, and a maximum working pressure of 63 bar.

KEY FEATURES:

• CF8M stainless steel body
• CF8M stainless steel disc
• 316 stainless steel spring
• PTFE gasket
• BSP threaded connections
• Sizes available: ¼” (DN8) to 2” (DN50)
• Can be installed in any position
• Working temperature range: -25°C to +180°C
• Max. working pressure: 63 bar
