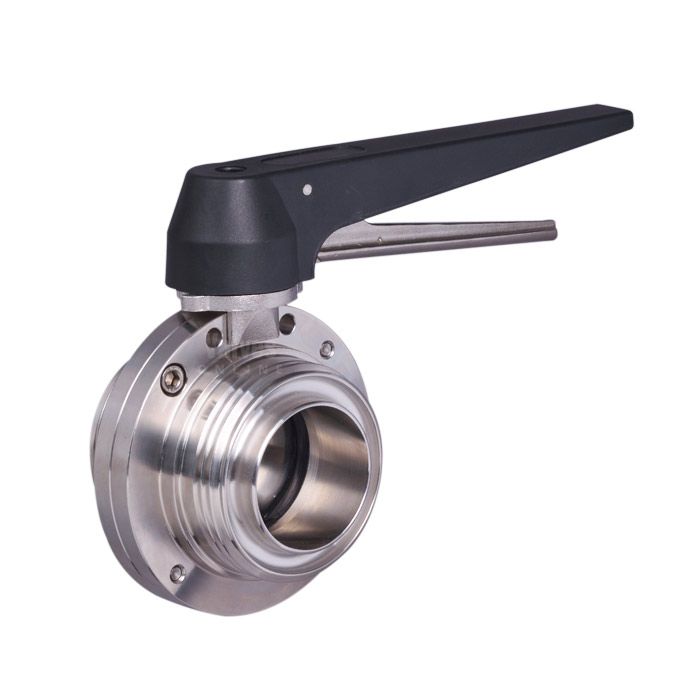

RJT Ended Hygienic Manual Butterfly Valve

This manual sanitary butterfly valve with RJT end connections is manufactuered in 316 stainless steel with a fully machined disc, highly polished to Ra less than 0.6 µm.

Suitable for use in food processing, dairy, brewing and cosmetic manufacturing.

Available in sizes 1" to 4" with the option of a pull handle or notch lever, this hygienic butterfly valve features EPDM seals as standard (Viton or Silicone seals are available on request).

These manual butterfly valves can be used for isolation and (with the notched lever handle) throttling of flow in line.

The valve can also be fitted to our pneumaitc on/off acutator.

Key features:

• 316 Stainless Steel Body
• EPDM Seals
• RJT End Connections
• 2 Position Pull Hand or Notch Lever
• Sizes: 1" to 4"
• Temperature range: -10°C to 120°C
• Pressure range: Up to 10 Bar (water at 20°C)
• Liners conform to FDA requirements
• Actuated version available

Datasheet:

 Hygienic RJT Butterfly Valve Datasheet
