High Temperature Check Valve Wafer Pattern

  • Disc Check Valve
  • Wafer Pattern
  • Stainless Steel body
  • Sizes 1/2" to 4"
  • Temperature up to 130°C
  • Pressure rating: PN25/40
From £46.98
SKU: CV4677 Availability: Available
In stock
SKU CV4677

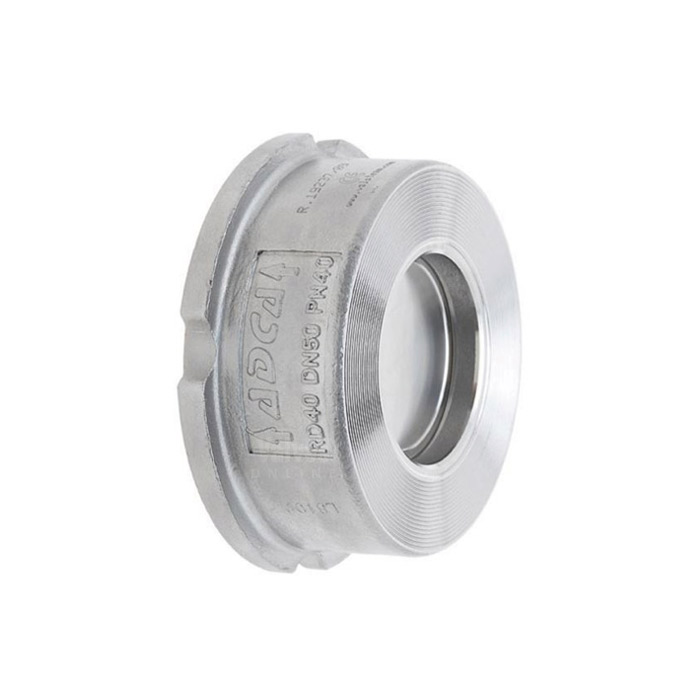

High Temperature Check Valve Wafer Pattern

Our High Temperature Check Valve Wafer Pattern is designed for use with steam and hot condensate. An all Stainless Steel disc check valve for use on saturated steam, water and other gases (Group 2) that are compatible with the construction method.

Benefits include a simple, compact design and low pressure drop.

  • Available in sizes: 1/2" to 4".
  • Seal material: Metal seat.
  • Temperature range: Up to 130°C.
  • Pressure rating: PN25/40.

Can be installed horizontally or vertically within the pipe.

Download our technical PDF datasheet here

More Information
End Connection Wafer Pattern
Design / Type Wafer Check, High Temperature
Industry / Approvals High Temperature
Body Material Stainless Steel
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Face to Face Dimension N/A
Manufacturer VOLT

The following downloads are available for the High Temp Check Valve Wafer Pattern:

High Temp Check Valve Wafer Pattern Datasheet
