Flanged Pressure Reducing Valve

  • Pressure Reducing Valve
  • Ductile Iron body
  • NBR seat
  • Flanged
  • Maximum inlet pressure: 16 Bar
  • Available pressure range 1.5-6 Bar, 2-8 Bar or 4-12 Bar
  • Sizes: 2" to 6"
From £873.69
SKU: PR4305 Availability: Available
In stock
SKU PR4305

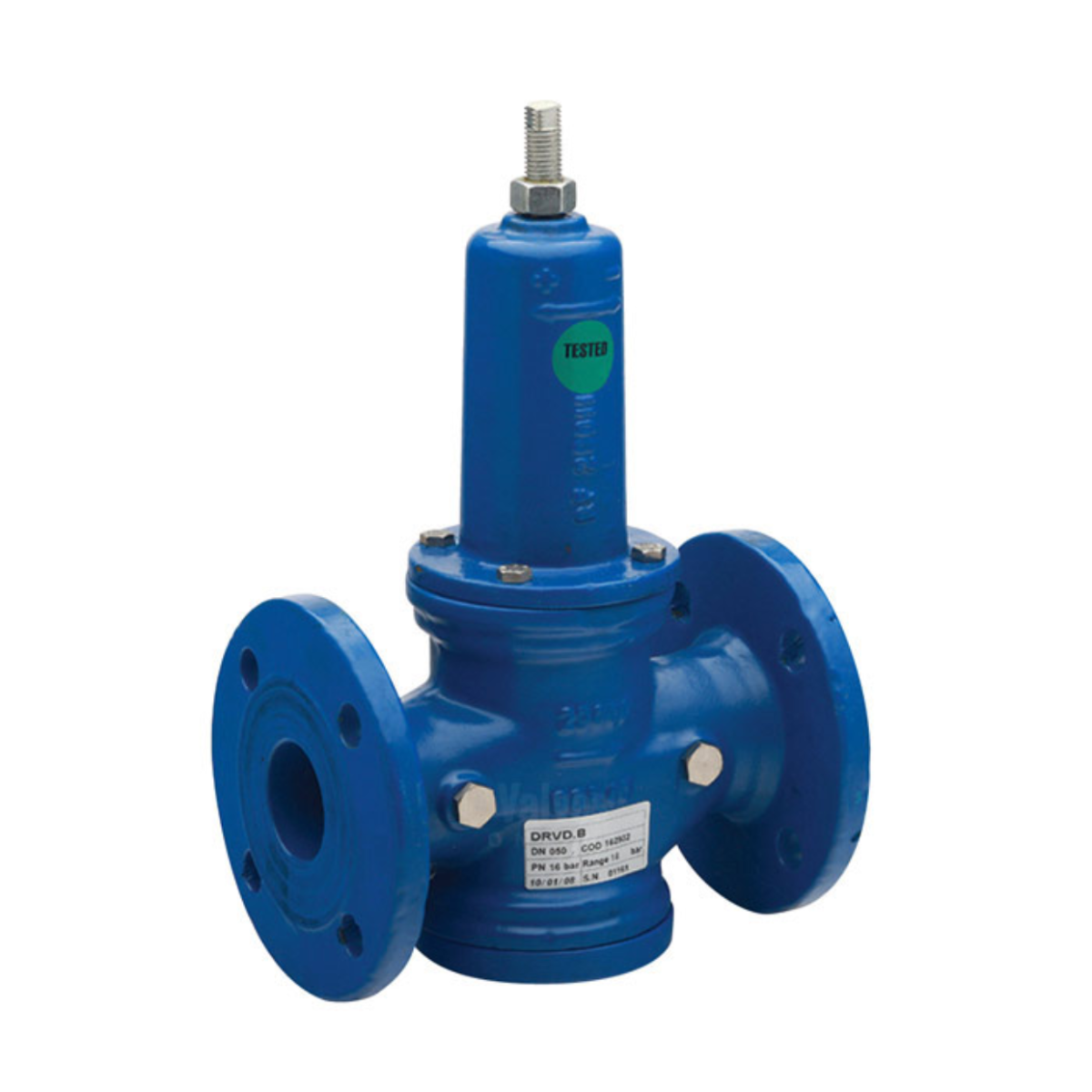

Flanged Pressure Reducing Valve

Our Flanged Pressure Reducing Valve is suitable for reducing pressure in industrial water applications; up to 80° C. A Ductile Iron valve with epoxy coated body, bonnet, steel spring and NBR seat.

Adjustment via a top mounted regulating screw.

Key features:

  • Pressure range: 1.5-6 Bar, 2-8 Bar or 4-12 Bar.
  • Available in sizes: 2" to 6".
  • Maximum temperature: 0 to 80°C.
  • Maximum inlet pressure: 16 Bar.

Optional extras are available including pressure gauges. (POA)

Download our technical PDF datasheet here

More Information
Media Liquid / Water
Adjustment Range 1.5 - 6 bar, 2 - 8 bar, 4 - 12 bar
Body Material Ductile Iron
End Connection Flanged
Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Industry / Approvals HVAC
Manufacturer VOLT

The following downloads are available for the Flanged Pressure Reducing Valve:

Flanged Pressure Reducing Valve Datasheet
