EXTREME PVDF Ball Valve

SKU
BV5552

Price on Application

For pricing and availability please contact us on:
01822 855 600.

Key Features
  • PVDF Manual Ball Valve
  • PVDF Body
  • FPM or EPDM Seals, PTFE Seats
  • PN10 Pressure Rated, 10°C to 120°C Temperature Rated
  • Sizes DN10 to DN50 (3/8" to 2")
  • Metric Fusion Socket

Details

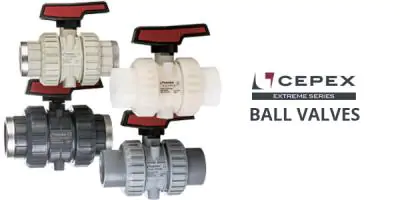

EXTREME PVDF Ball Valve

A Manual Ball Valve from the Cepex Extreme product range ideal for isolation duties. With a double union design making use of a unique 'ANTI-BLOCK' system that prevents and avoids ball bloackage is suitable for processes up to 10 Bar and 120° using PVDF Pipework systems.

Thanks to the ball valves PVDF construction, FPM or EPDM seals and PTFE seats it is suitable for use with many inorganic chemicals and processes across industries such as Water Treatment, Chemical Processing, Energy and associated industries.

Like all CEPEX EXTREME valves the ball valve is laser marked with the serial batch number providing 100% traceability, coupled with 100% bench pressure tests using water, you can be assured of the quality, accuracy and reliability of Cepex valves purchased from Valves Online.

Options include an alternative operator with multi-position notch-plate and lockout, Pneumatic and Electric automation, and alternative end connections including imperial fusion socket, BSP & NPT Female Threaded. If any of these are required please enquire with one of our sales team to explore the best possible options for your process.

Datasheet:

 CEPEX EXTREME PVDF Ball Valve Datasheet

Technical Attributes

Manufacturer Cepex
End Connection Metric Fusion Socket
Body Material PVDF
Seal Material FPM or EPDM
Seat Material PTFE
Size 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), D16, D20, D25, D32, D40, D50, D63
Design Full Bore, Double Union
Industry / Approvals Aggressive Chemicals
Temperature Range 10°C to 120°C
Pressure PN10 Rated
