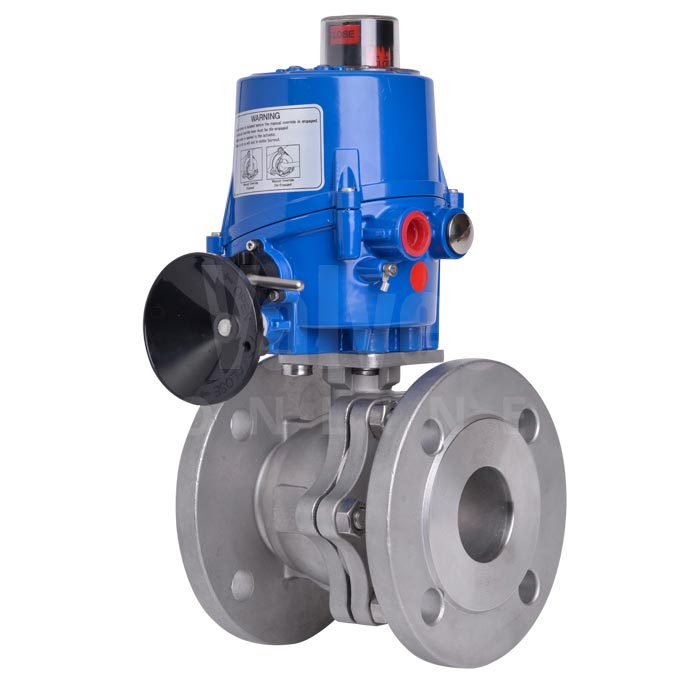

Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D - 0

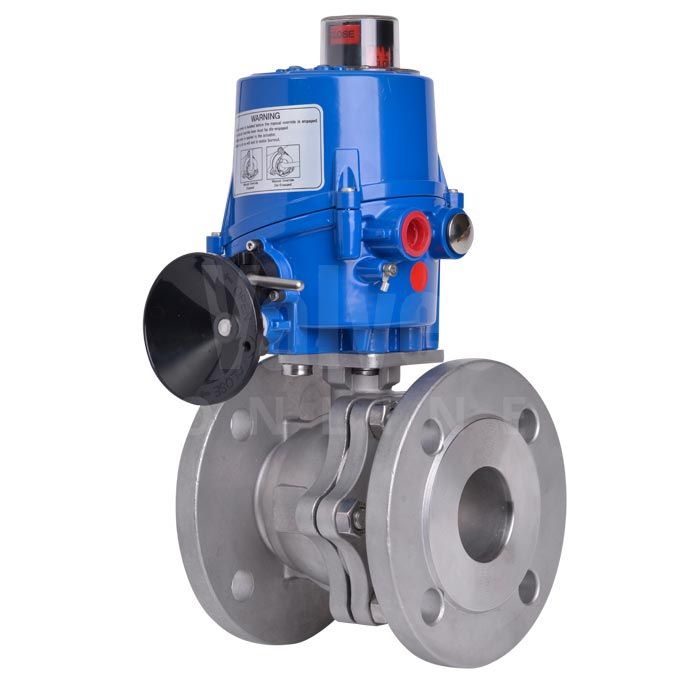

Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D - 1

Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D - 2

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D

Name: Electric Actuated Stainless Steel PN40 Ball Valve – Mars Series 90D
Brand: Mars
SKU: EA5052
Price: 521.85 GBP
Availability: InStock

SKU

EA5052

Available to Order

Quantity

Key Features

Mars 90D PN40 Motorised Ball Valve
Direct Mounting between Valve and Actuator
Stainless Steel Body – Full Bore
Flanged PN40
RPTFE Seats, Graphite Seals
Sizes: 1/2" - 6" (DN15 - DN150)
Powerful Electric Actuator
Manual Override & Limit Switches Included
Various Voltage Options

Details

90D Electrically Actuated Stainless Steel PN40 Ball Valve

A combination of a powerful Electric actuator, fitted to our Mars series 90D-60-F4 heavy duty high performance, flanged PN40 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.

The actuator can be supplied in a range of voltages and has limit switches, optical indicator manual override and torque limiter as standard.

Key Features:

Powerful Electric motor
Stainless Steel Body – Full Bore
Flanged PN40
Power Close / Power Open
RPTFE Seats
Sizes: 1/2" - 6"
Various Voltages

Datasheet:

Series 90D Electric Actuated PN40 Ball Valve Datasheet

Technical Attributes

End Connection	Flanged PN40
Body Material	Stainless Steel
Seal Material	Graphite
Seat Material	RPTFE
Size	1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Design	2 Piece, Full Bore
Industry / Approvals	General / Industrial / Process
Temperature Range	Up to: 180°C
Pressure	PN40 Rated
Actuator	HQ Electric Actuator
Actuator Voltages	24V DC, 24V AC, 110V AC, 230V AC
Actuator Features	On/Off, Manual Override, Limit Switches, Optical Indicator
Manufacturer	Mars
