Electric Actuated Stainless Steel ANSI 150 Ball Valve – Mars Series 90D

SKU
EA5051

in-stock Available to Order

Key Features
  • Motorised Mars 90D ANSI 150 Ball Valve
  • Direct Mounting between Valve & Actuator
  • Stainless Steel Body – Full Bore
  • Flanged ANSI 150
  • RPTFE Seats, Graphite Seals
  • Sizes: 1/2" - 6" (DN15 - DN150)
  • Powerful Electric Actuator
  • Manual Override & Limit Switches
  • Various Voltage Options

Details

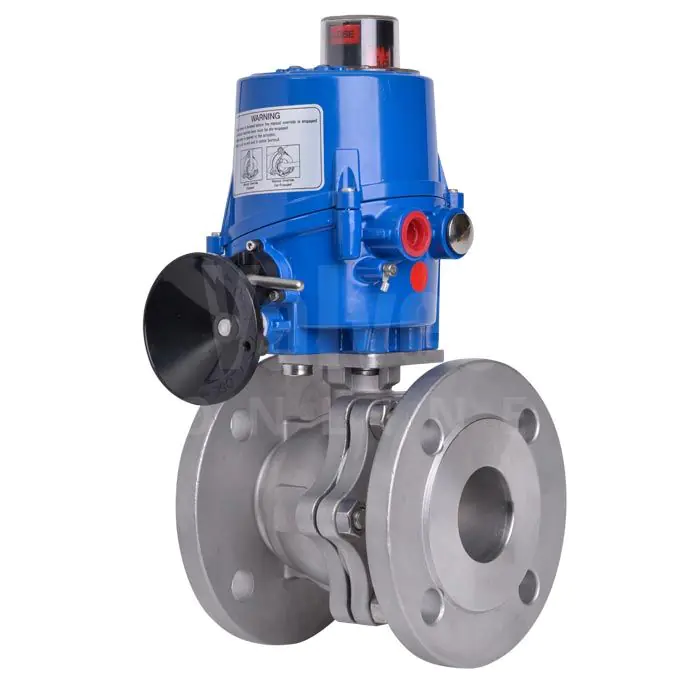

90D Electrically Actuated Stainless Steel ANSI 150 Ball Valve

A combination of a powerful Electric actuator, fitted to our Mars series 90D-10-F4 heavy duty high performance, flanged ANSI 150 ball valve in stainless steel. The valve comprises of a split 2-piece body with RPTFE Seats and graphite seals. The electric actuator has the capabilities to bring to you an exceptional combination, that offers trouble free operation and long life.

The actuator can be supplied in a range of voltages and has limit switches, optical indicator, manual override and torque limiter as standard.

Key Features:

  • Powerful Electric motor
  • Stainless Steel Body – Full Bore
  • Flanged ANSI 150
  • Power Close / Power Open
  • RPTFE Seats. Graphite Seals
  • Sizes: 1/2" - 6"
  • Various Voltages

Datasheet:

 Series 90D Electric Actuated ANSI 150# Ball Valve Datasheet

Technical Attributes

Manufacturer Mars
End Connection Flanged ANSI 150
Body Material Stainless Steel
Seal Material Graphite
Seat Material RPTFE
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150)
Design 2 Piece, Full Bore
Industry / Approvals General / Industrial / Process
Temperature Range Up to: 180°C
Pressure Class 150 Rated
Actuator HQ Electric Actuator
Actuator Voltages 24V DC, 24V AC, 110V AC, 230V AC
Actuator Features On/Off, Manual Override, Limit Switches, Optical Indicator

Approvals

The following certs and approvals are available to download for the Mars Series 90D Ball Valve:

CE Cert

PED Cert

ATEX Cert

Fire Safe Cert

SIL Cert

PTFE Cert
