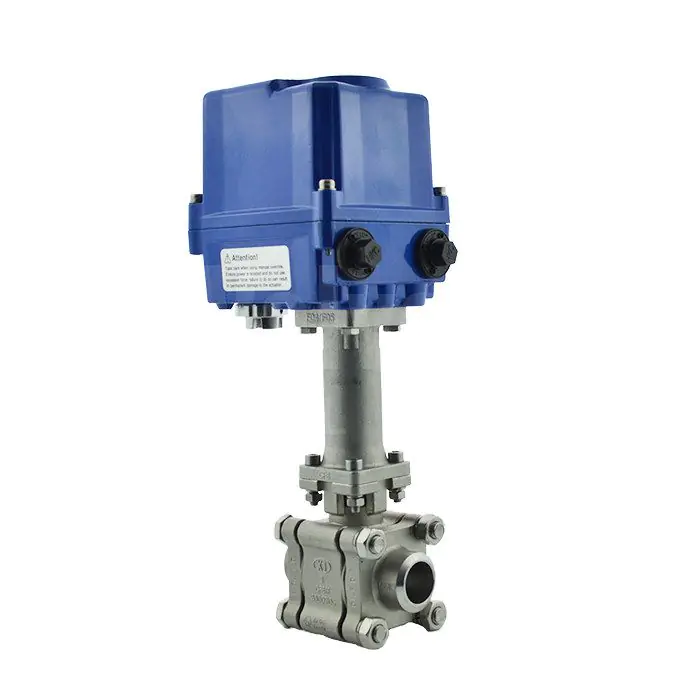

A high temperature, electrically actuated stainless steel ball valve in sizes ranging from 1/2" to 2". End connections are offered screwed BSP, NPT and Socket weld. The port is full bore and seat materials are carbon filled reinforced PTFE.
The electric actuator offers high performance on/off control, supplied in various voltages and many options as standard.
In order to protect the actuator from the valve a heat dissipating extension (TSM) is fitted.
Available in Screwed BSP, Socket Weld or NPT
Sizes: 1/2" to 2"
Pressure range: Up to 2000 PSI
Temperature range: -20°C to 200°C.
Features a blow-out proof stem.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
