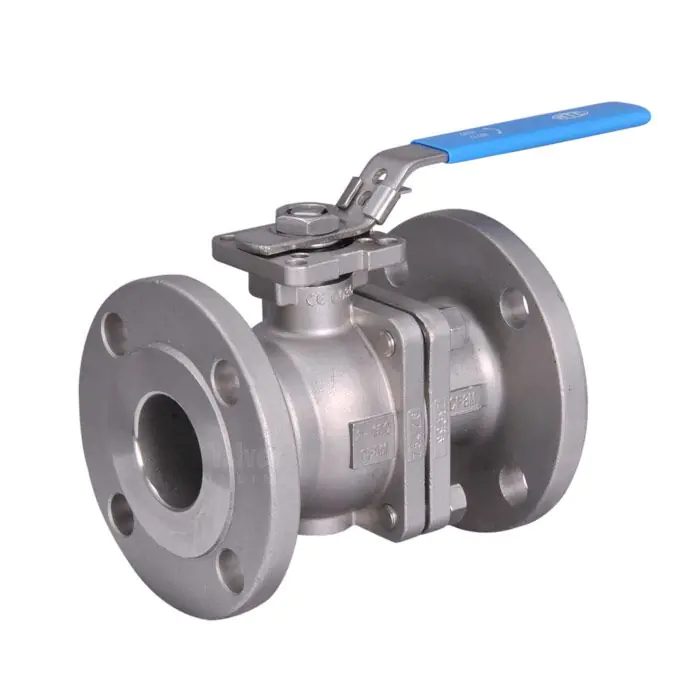

Direct Mount PN16 Flanged Stainless Steel Ball Valve

SKU
BV5090

in-stock Available to Order

Key Features
  • High Performance 2 Piece Ball Valve
  • Stainless Steel Body
  • Flanged PN16
  • Sizes: 1/2" to 8"
  • Full Bore, Direct Mount
  • Fire Safe, Anti Static
  • ATEX Approved

Details

Direct Mount PN16 Flanged Stainless Steel Ball Valve

Our Stainless Steel Ball Valve 2 Piece Flanged PN16 Direct Mount provides safe operation for both general and industrial chemical applications and hazardous environments. A full bore high performance ATEX approved fire safe anti static valve with Stainless Steel body, reinforced TFM seat, graphite seal and ISO mounting top for actuation.

Benefiting from a split body, two piece design the valve is ATEX approved, Fire Safe certified to API607 5th edition with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.

Key features:

  • Available in PN16, sizes: 1/2" to 8".
  • Temperature range: -20°C to 180°C.
  • Operating pressure: PN16.
  • Insulated grip, lockable lever handle.
  • Movement: 90° turn.
  • ATEX approved.

Investment cast with low torque.

Datasheet:

 Stainless Steel Ball Valve 2 Piece Flanged PN16 Direct Mount Datasheet

Technical Attributes

Manufacturer VOLT
End Connection Flanged PN16
Body Material Stainless Steel
Seal Material Grafoil
Seat Material TFM1600
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200)
Design 2 Piece, Full Bore, Fire Safe
Industry / Approvals ATEX
Lever Lockable Manual Lever
Temperature Range -20°C to 180°C
Pressure PN16 Rated
Actuatable? Yes - features ISO Direct Mounting Pad
