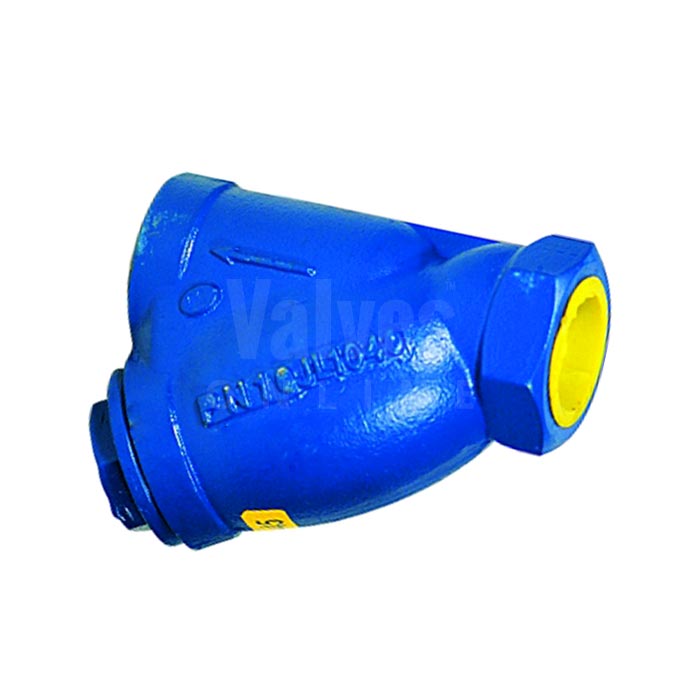

Cast Iron Y Type Strainer Screwed BSP

  • Cast Iron Y Type Strainer
  • Screwed BSP
  • Removable drain plug
  • Stainless Steel screen mesh
  • Sizes: 1/2" up to 3"
From £19.59
SKU: YS5038 Availability: Available
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
▲ Please Select Options Above ▲

Cast Iron Y Type Strainer Screwed BSP

Our Cast Iron Y Type Strainer Screwed BSP is compact, easy to clean and features a removable drain plug and Stainless Steel screen mesh. It provides an economical solution and is recommended for applications where damage to valves and other related mechanical equipment needs to be avoided.

Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.

Key features:

  • Available in Screwed BSP, sizes: 1/2" up to 3".
  • Temperature range: Up to 200°C .
  • Pressure rating: PN16.

The installation of a strainer is always recommended to ensure trouble-free service.

Datasheet:

Cast Iron Y Type Strainer Screwed BSP Datasheet

More Information
End Connection BSP
Body Material Cast Iron
Size 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Filtration 1mm (Mesh 19), 1.25mm (Mesh 15.4)
Design Y Type
Industry / Approvals Steam, Liquid
Manufacturer VOLT

The following downloads are available for the Cast Iron Y Type Strainer Screwed BSP:

Cast Iron Y Type Strainer Screwed BSP Datasheet

From £19.59
SKU: YS5038 Availability: Available
