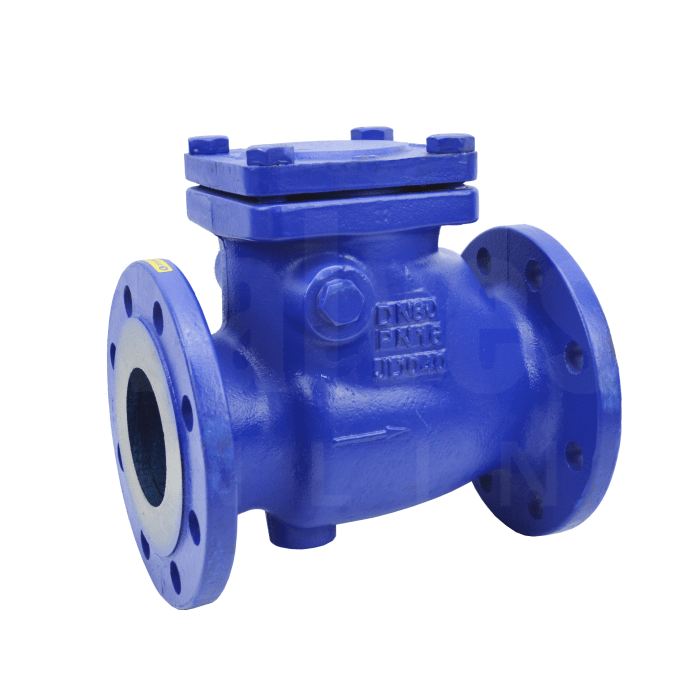

Cast Iron Swing Check Valve Flanged PN16 - EPDM Seat

SKU
CV5179

in-stock Available to Order

Key Features
  • Swing Check Valve
  • Cast Iron Body
  • Economically Priced
  • EPDM Seat
  • Temperature Range: -10°C to 120°C
  • Flanged PN16
  • Sizes: 1 1/2" up to 12"

Details

Cast Iron Swing Check Valve Flanged PN16 with EPDM Seat

Our Cast Iron Swing Check Valve is Flanged to PN16. It offers excellent sealing capabilities for both high and low pressures.

Typically used for general purpose, industrial and HVAC applications which include water, heating, air-conditioning plants and compressed air systems. An economical, reliable valve with Cast Iron check valve.

Installed either vertically (upwards only) or horizontally.

Key Features:

  • Cast Iron body
  • EPDM Seat
  • Available in sizes: 1 1/2" to 12"
  • Temperature range: -10°C to 120°C
  • Pressure rating: PN16 rated
  • Low cracking pressure

For full details please download the accompanying datasheet.

Datasheet:

 Cast Iron Swing Check Valve Flanged PN16 Datasheet

Technical Attributes

End Connection Flanged PN16
Design / Type Swing Check
Industry / Approvals General Use, HVAC
Body Material Cast Iron
Size 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Face to Face Dimension 1 1/2": 180mm , 2": 200mm, 2 1/2": 240mm, 3": 260mm, 4": 300mm, 5": 350mm, 6": 400mm, 8": 500mm, 10": 600mm, 12": 700mm
Manufacturer Zetkama - European
Main Features
  • 1 1/2" to 12"
  • -10°C to 120°C
  • Up to PN16 Rated
