Cast Iron Knife Gate Valve ANSI 150 Handwheel Operated

Details

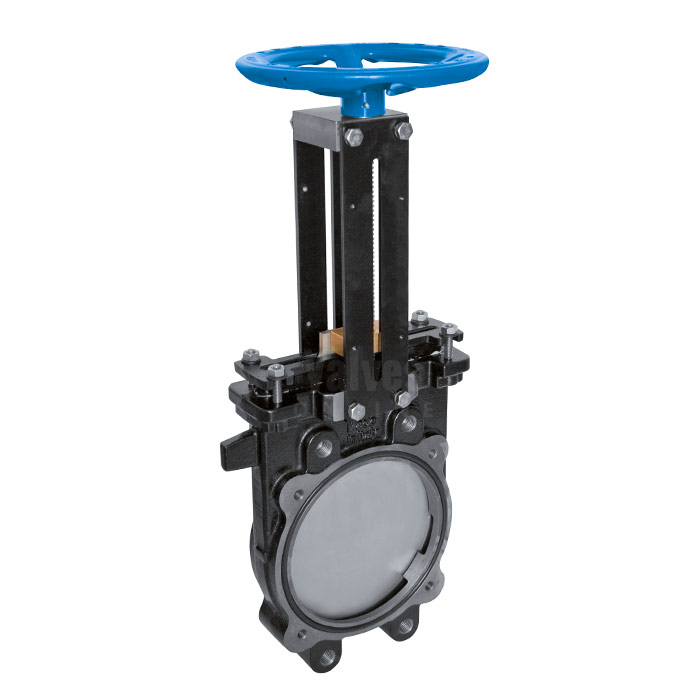

Cast Iron Knife Gate Valve ANSI 150 Handwheel Operated

Our Cast Iron Knife Gate Valve ANSI 150 Handwheel Operated is suitable to fit between ANSI 150 or AGRI Standard Square Flanges; designed for biogas, agricultural and slurry applications. A uni-directional, handwheel operated manual knife gate valve with Cast Iron body, NBR seats and a Stainless Steel fully enclosed blade for safety.

Supplied with Stainless Steel screws and tie-rod ends to prevent corrosion the valve also benefits from a robust protective coating, completely isolating the moving parts of the disc.

The design of the body and seat ensures non-clogging and allows the valve to be installed in any position.

Features an open / closed position indicator fitted as standard.

Key features:

• Available with Cast Iron body and NBR seats, in sizes: 6" and 8".
• Temperature range: -20°C (without water) up to 90°C.
• Pressure rating: 10 Bar 6" and 8 Bar 8".

Complies with directive 97|23|CE (PED).

Datasheet:

 Cast Iron Knife Gate Valve ANSI 150 Handwheel Operated Datasheet
