Cast Iron Flanged Disc Check Valve

SKU
CV4667

in-stock Available to Order

Key Features
  • Axial Disc Check Valve
  • Cast Iron Body
  • EPDM Seat
  • Stainless Steel Spring
  • Flanged to PN16
  • Standard or Foot Valve with Strainer
  • Sizes 2" to 12"

Related Products

PN16 Cast Iron ARI Strainer
PN16 Cast Iron ARI Strainer
£52.00
View Product
Cast Iron PN16 Economy Gate Valve
Cast Iron PN16 Economy Gate Valve
£78.02
View Product

Details

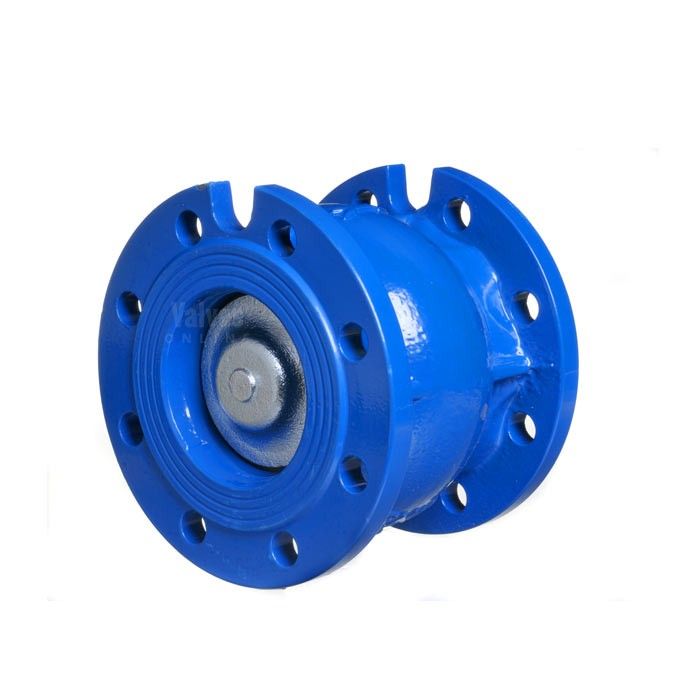

Cast Iron Flanged Disc Check Valve

A Cast Iron Flanged Disc Check Valve, that offers excellent sealing capabilities for both high and low pressures. Used for general purpose, industrial and HVAC applications which include water, heating, air-conditioning plants and compressed air systems.

An economical, reliable valve with the option to convert to a Foot Check valve. Body is Cast Iron, with EPDM seat and Stainless-Steel spring. When fitted with a Steel basket the valve becomes a fully functional Foot Valve.

Installed either vertically (upwards only) or horizontally.

Key Features:

  • Cast Iron Body
  • EPDM Seat
  • Stainless Steel Spring
  • Standard or Foot Check valve
  • Flanged PN16
  • Sizes: 2" up to 12"
  • Temperature range: -10°C to 105°C
  • Pressure rating: PN16 rated
  • Low cracking pressure

For full details please download the accompanying datasheet.

Datasheet:

 Cast Iron Flanged Check Valve Datasheet

Technical Attributes

End Connection Flanged PN16
Design / Type Disc Check, Foot Valve, Axial Disc Check
Industry / Approvals HVAC
Body Material Cast Iron
Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Manufacturer Polix
Main Features
  • 2" to 12"
  • Flanged to PN16
  • Standard or Foot Valve with Strainer
