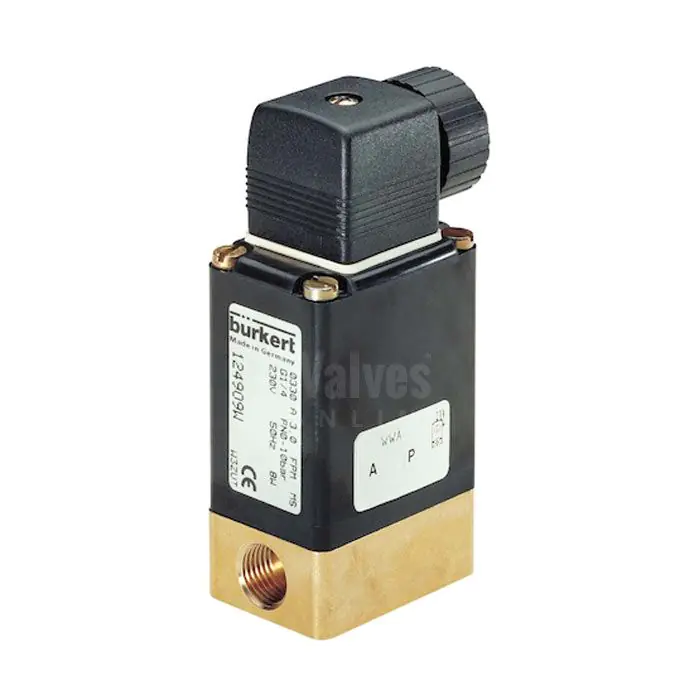

Burkert Type 0330 Brass Solenoid Valve

  • Servo assisted, direct acting with isolating diaphragm
  • 3/2 way, normally closed or normally open
  • Brass body
  • NBR seals
  • Thread size: G 1/4
  • Media temperature: 0°C to +80°C
  • Pressure range: 0-16 Bar
  • Voltage: 24V DC, 24V AC and 230V AC
  • Suitable for slightly contaminated fluids
From £113.40
SKU: BB0330 Availability: Available
In stock
SKU BB0330

Burkert Type 0330 Brass Solenoid Valve

The Burkert Type 0330 Brass Solenoid Valve is a direct acting servo assisted solenoid valve designed to handle slightly contaminated fluids with ease; 3/2 way normally closed or normally open valve. A fast acting, reliable valve delivering a long service life, even in non-lube conditions!

The valve benefits from a magnetic system and media chamber, separated from one another by a separating diaphragm system, ensuring hermatic isolation.

Key features:

  • Available in Brass, 1/4" port: 3/2 way normally closed or normally open.
  • Orifice sizes: 2.0mm and 3.0mm (subject to chosen configuration).
  • Seal material: NBR.
  • Voltage: 24V DC, 24V AC and 230V AC.
  • Pressure range: 0-16 Bar.
  • Media temperature: 0°C to +80°C.
  • Ambient temperature: +55°C.
  • Thread size: G 1/4.

Options include cable plug with LED and/or varistor.

Download the PDF datasheet for the Burkert Type 0330 Brass Solenoid Valve or the accompanying operating instructions here.

More Information
Process / Industry Contaminated / Aggressive Chemicals
Body Material Brass
Design 3 Way
Port Size 1/4"
Manufacturer Burkert

The following downloads are available for the Burkert Type 0330 Brass Solenoid Valve:

Burkert Type 0330 Brass Solenoid Valve Datasheet

Burkert Type 0330 Brass Solenoid Valve Operating Instructions
